119Y30 | Hammond Manufacturing Transformers
119Y30 | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £32.93
5+ £31.61
10+ £30.30
25+ £29.64
50+ £28.65
100+ £28.32
250+ £27.99
500+ £27.66
1000+ £27.50
2500+ £27.17
In Stock Prices shown excludes VAT
Product Information

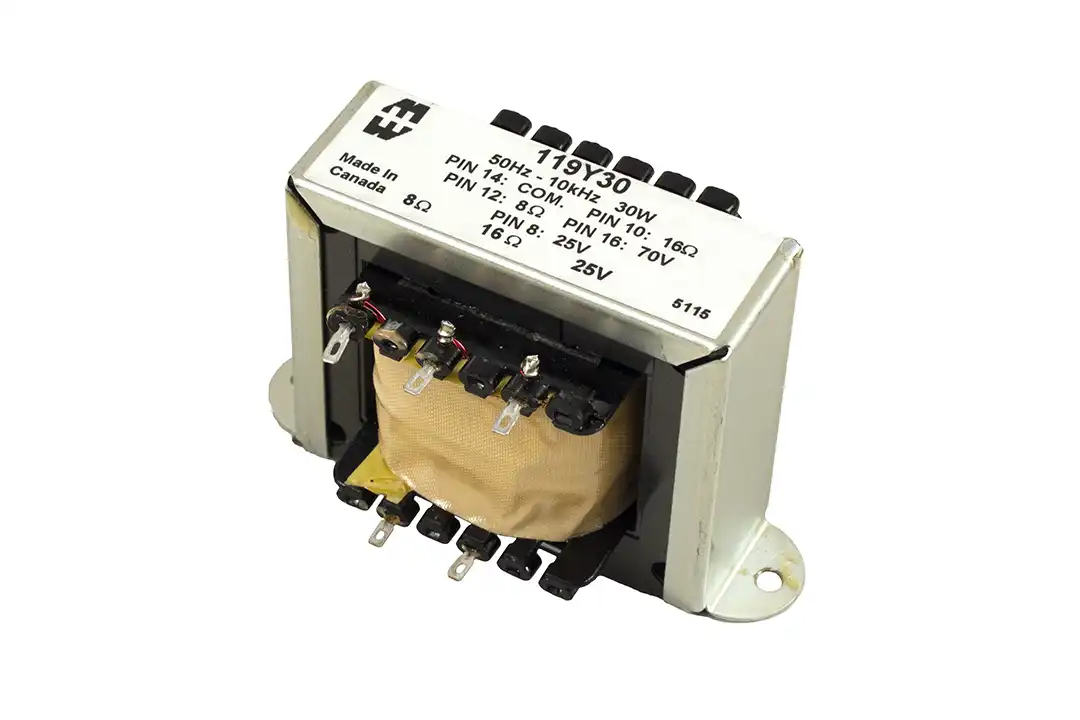

Part No 119Y30
Product Series 119 Series
Max Output (Watts)30
Line Output70 & 25v
Mounting TypeBracket
Mounting Centres90mm
Mounting Hole Slot5mm
Weight (lbs.)61
Drawing Figure25
Dimension A102mm
Dimension B57mm
Dimension C67mm
Dimension D90mm
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 119Y30 Share on Facebook Share on Twitter Share on LinkedIn

119Y30 | 119 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

119 Series - Audio Sound Distribution Line Matching

Product Features:
  • Suitable for driving from solid state amplifiers where isolated windings are not required or can be used with the "Classic" 1600 tube output transformers to provide a 25V or 70V line output.
  • 8 or 16 Ohm input, 25V or 70V line output.
  • Frequency response 50 Hz. to 10 Khz. at full ratings.
  • Leads 6" long minimum.
  • Can be reversed for operation at high power speaker locations.
Related Products:
  • For speaker matching from older "Classic" 600 Ohm equipment - check out the 119DA Series matching transformers.
