117F16 - Hammond Manufacturing Transformers
117F16 | Hammond Manufacturing Transformers | KGA Enclosures Ltd

Product Price Breakdown
1+ £23.82
5+ £22.87
10+ £21.92
25+ £21.44
50+ £20.73
100+ £20.49
250+ £20.25
500+ £20.01
1000+ £19.89
2500+ £19.66
In Stock Prices shown excludes VAT
Product Information
Part No 117F16
Product Series 117 Series
System Volts70
Power Rating (Watts)16
Audio Power Taps16, 8, 4, 2, 1
Voice Coil Impedance (Ohms)8
Mounting Centers80mm
Weight (lbs)1.5
Dimension A94mm
Dimension B51mm
Dimension C59mm
Dimension D80mm
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 117F16 Share on Facebook Share on Twitter Share on LinkedIn

117F16 | 117 Series | Hammond Manufacturing Transformers | KGA Enclosures Ltd

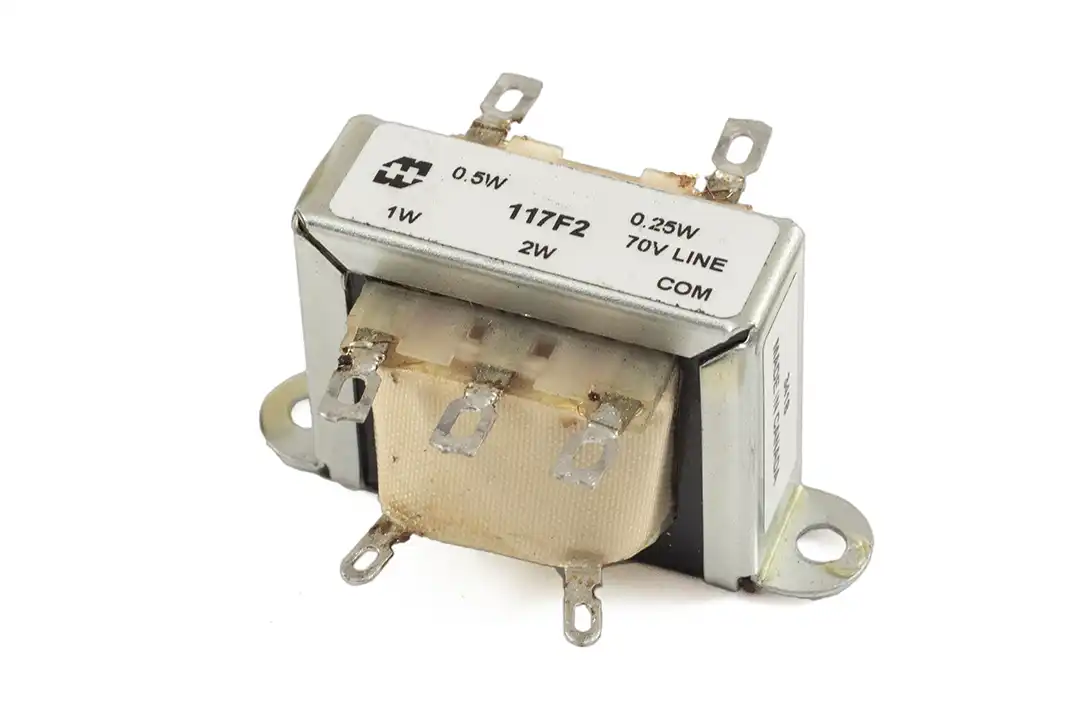

117 Series - Audio Sound Distribution Line Matching

Product Features:
  • Couple 3.2, 8 or 16 Ohm speakers to 25 to 70 volt line outputs of amplifiers.
  • Up to 5 power tap levels available (except 117F2 which has 4.
  • Primary taps marked in watts (no calculation necessary), to match speaker power.
  • Frequency response 100 Hz. to 9 Khz. (1 db. reference @ 1 Khz.).
  • Insertion loss less than 2 db.
  • Distortion is less than 1.25% @ 100 Hz. at maximum power.
  • Horizontal, channel bracket, 2-hole (0.187" dia.) mounting.
  • All models have solder lugs, also suitable for slip on jumper connections.
  • Total power requirements of speakers should not exceed the rated power of each transformer or rated power of the amplifier.
Related Products:
  • For speaker matching from older "Classic" 600 Ohm equipment - check out the 119DA Series matching transformers.
