Product Information
Part No RMHD19003BK
Product Series RMAD Series
Technical DrawingsDXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - RMHD19003BK Share on Facebook Share on Twitter Share on LinkedIn

RMHD19003BK | RMAD Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

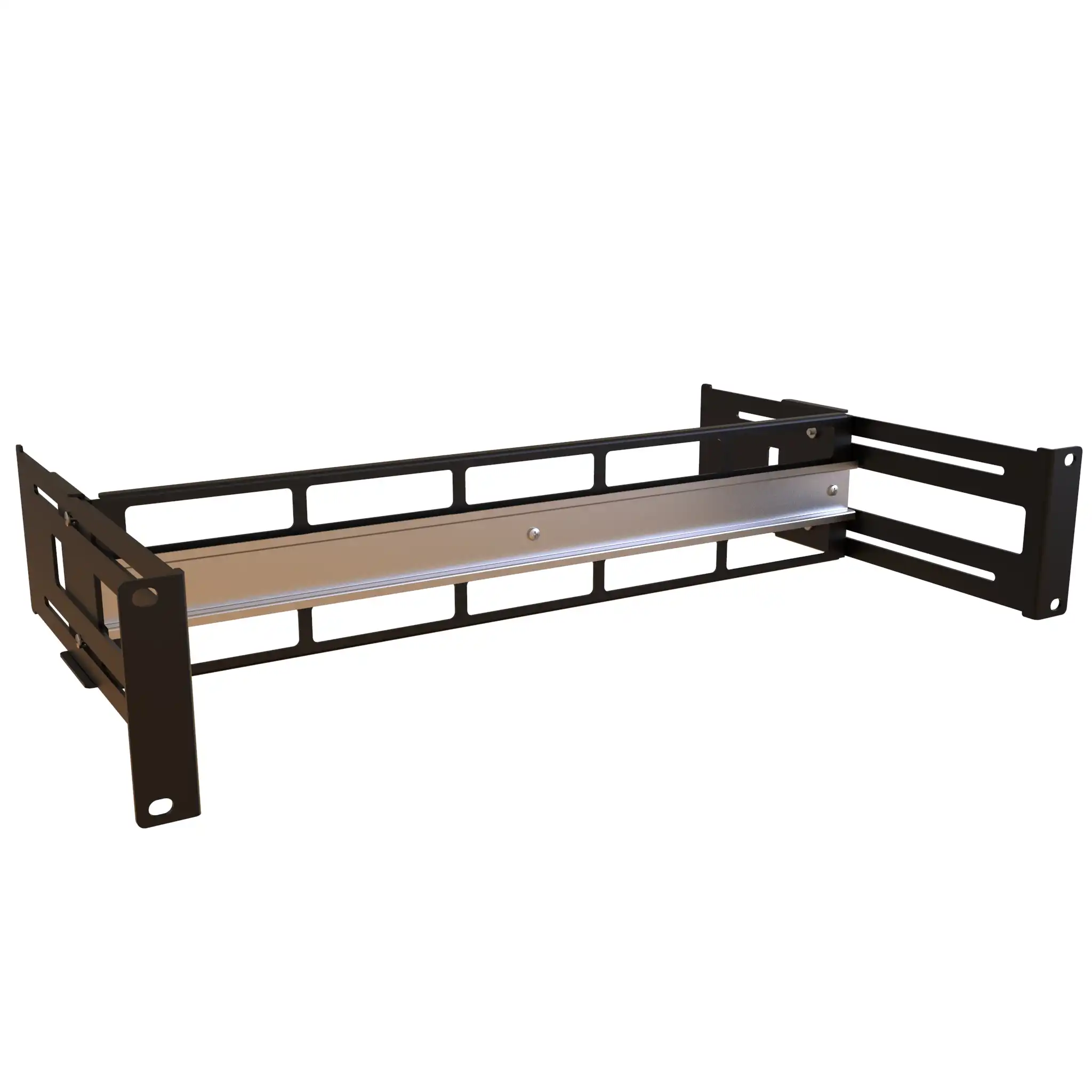

RMAD Series - Adjustable Rack Mount DIN Rail Kit

Product Features:
  • Mounts to standard EIA 19" rack rails.
  • Includes a 0.3" thick, top-hat standard DIN rail.
  • Knockdown design ships unassembled for easy handling and shipping protection.
  • Finished in RAL 9005 black powder coat. Complies with the Greenguard guidelines for indoor air quality.
  • TAA-compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.
RMAD (Light Duty) Features:
  • Constructed of 14 and 16-gauge steel.
  • Provides up to 8.38" of adjustable depth for DIN rail-mounted equipment.
  • Cutouts on both the rear and sides provide cable pass-through.
  • 26 lbs (11 kg) load rating.
RMHD (Heavy Duty) Features:
  • Constructed of 14-gauge steel.
  • Provides up to 8.00" of depth options for DIN rail-mounted equipment.
  • 100 lbs (45 kg) load rating.
