Product Information
Part No RB-SW12
Product Series RB-SW Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - RB-SW12 Share on Facebook Share on Twitter Share on LinkedIn

RB-SW12 | RB-SW Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

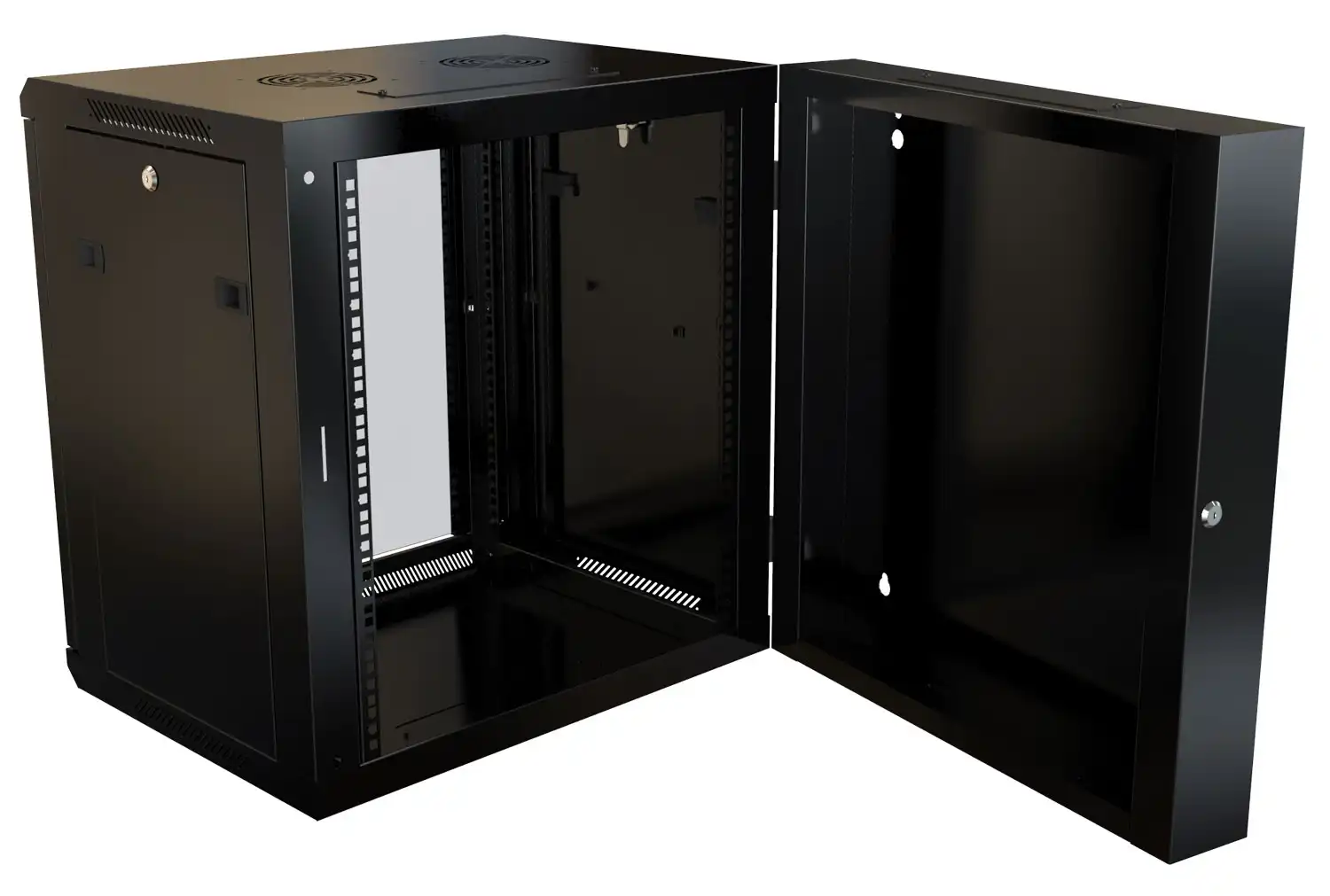

RB-SW Series - Economy Swing-Out Wall Mount Cabinet
130 lbs. (59 kg.) Weight Capacity

Product Features
  • Double-hinged for easy rear access (body swings open to 120°).
  • Constructed in light-duty 16 gauge steel.
  • Includes two (2) pairs of EIA compliant square hole punched rails with 19" mounting.
    • Starter pack of (25) M6 screws and cage nuts included.
    • For 10-32 hardware, see the CAGKIT Series.
  • Rails are adjustable.
  • Includes one (1) locking lightly smoked tempered glass reversible front door (hinged on the right side as standard).
  • Includes one (1) pair of locking removable side panels.
  • The front and side of the frame include venting for airflow.
  • Top, bottom, and rear cable access.
  • Provision for optional fans on the top panel.
  • The middle body section is not reversible and hinges on the left side.
  • Ships assembled - ready to install.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
  • Finished in black powder paint.
  • Tested to 130 lbs. (59 kg.) of equipment load capacity.
  • RoHS Compliant.
