Product Information
Part No RB-CW2
Product Series RB-CW Series
Technical DrawingsDXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - RB-CW2 Share on Facebook Share on Twitter Share on LinkedIn

RB-CW2 | RB-CW Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

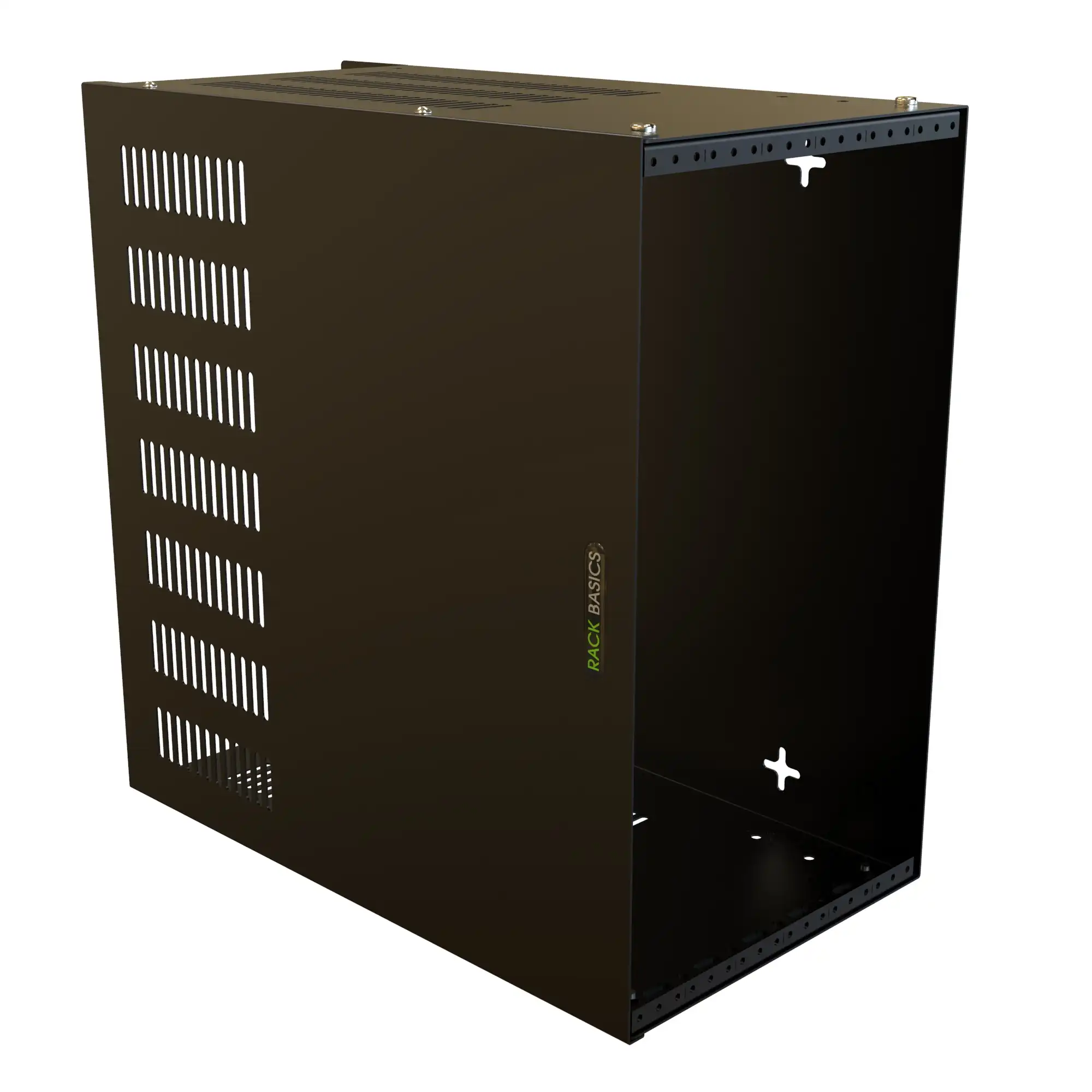

RB-CW Series - Compact Wall Rack
Up To 60 lbs. (27 kg.) Weight Capacity

Product Features
  • Available in 2U, 4U, and 6U mounting heights.
  • Includes a single pair of 10-32 threaded rack rails that can be positioned in four locations.
    • Three (3) positions in the front, one (1) position in the rear.
    • Starter pack of SCREW1032-10 10-32 rack screws.
  • Removable cover panel for ease of equipment installation.
  • Wall mount for 16" centers can be mounted with equipment positioned vertical or sideways.
  • The rear of the rack includes a cutout for cable entry and lacing points for cable management.
Product Specifications
  • The housing and cover are constructed in 16 gauge steel.
  • Mounting rails are constructed in 12 gauge steel.
  • 60 lbs. (27 kg.) static load rating.
  • Finished in sand textured black powder paint. Complies with the Greenguard guidelines for indoor air quality.
  • TAA Compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.
