Product Price Breakdown
1+ £100.22
10+ £92.21
25+ £90.20
50+ £87.19
100+ £86.19
250+ £85.19
500+ £84.19
1000+ £83.69
2500+ £82.68
In Stock Prices shown excludes VAT
Product Information
Part No RB-AWR6
Product Series RB-AWR Series
Technical DrawingsDXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - RB-AWR6 Share on Facebook Share on Twitter Share on LinkedIn

RB-AWR6 | RB-AWR Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

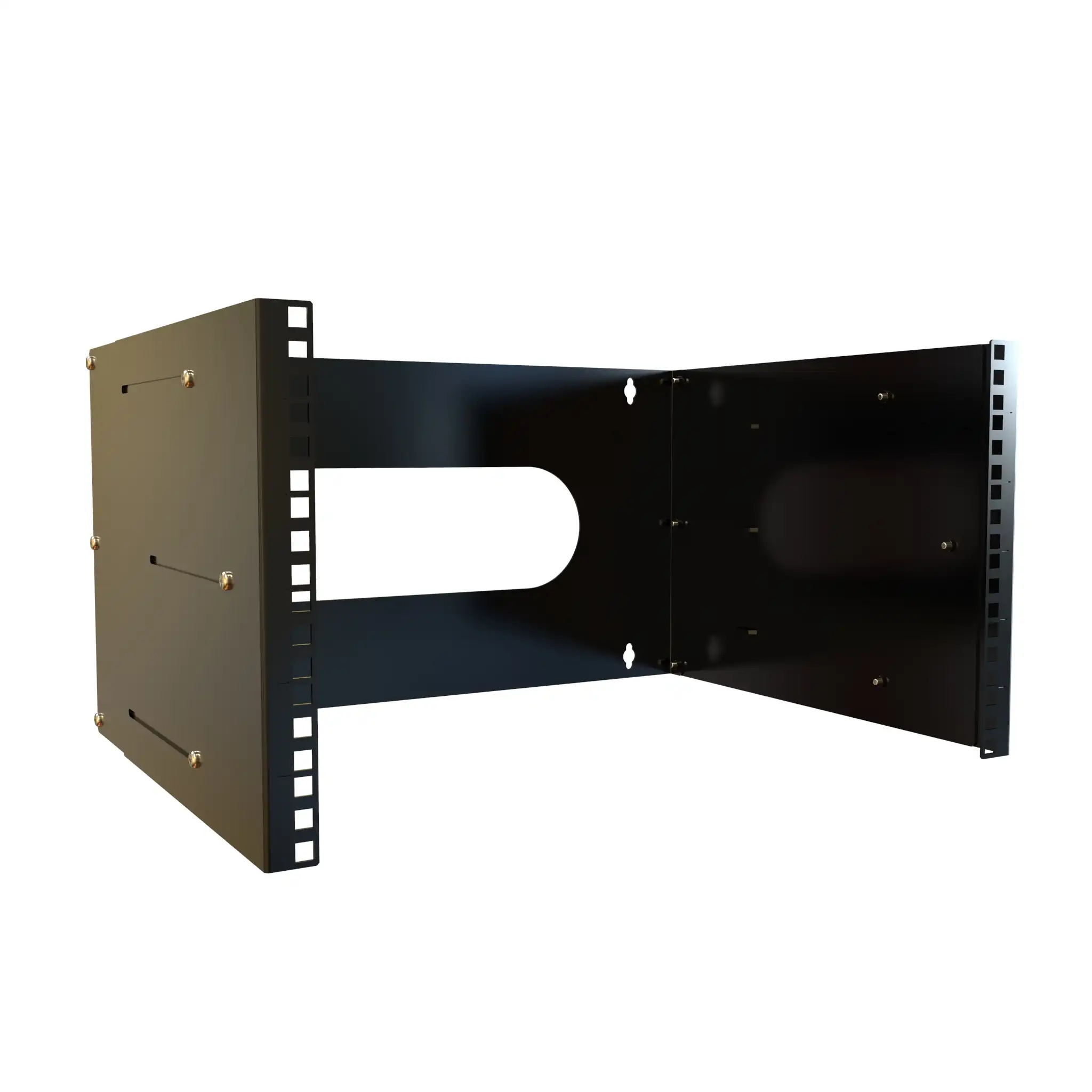

RB-AWR Series - Adjustable Depth Wall Rack
95 lbs. (43 kg.) Weight Capacity

Product Features:
  • Available in 6U, 8U, and 12U mounting heights.
  • Adjusts in depth from 15" to 21" with ease so there is no need to disassembly the whole rack to adjust the depth.
  • Rear cable access with multiple tie points for cable management.
  • Knockdown design ships unassembled for easy handling reduced freight cost and shipping protection.
Product Specifications:
  • Constructed in 14-gauge steel.
  • 19" rack mount punched square hole mounting rails are constructed in 14-gauge steel and include rack unit indicators.
    • 24-pack of M5 mounting hardware included.
  • 95 lbs (43 kg) static load rating.
  • Finished in RAL 9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.
Hammond Manufacturing Rack Solutions
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Rack Solutions product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please remember - KGA Enclosures Ltd are authorised distributors of this product range. Please only use authorised distributors to purchase these products. This will then ensure you receive a genuine product.
