Find the RACSV190315BK1 here at KGA Enclosures, authorised distributors for Hammond Manufacturing Rack Solutions. Purchase or buy the RACSV190315BK1 here.
RACSV190315BK1 | RACS Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

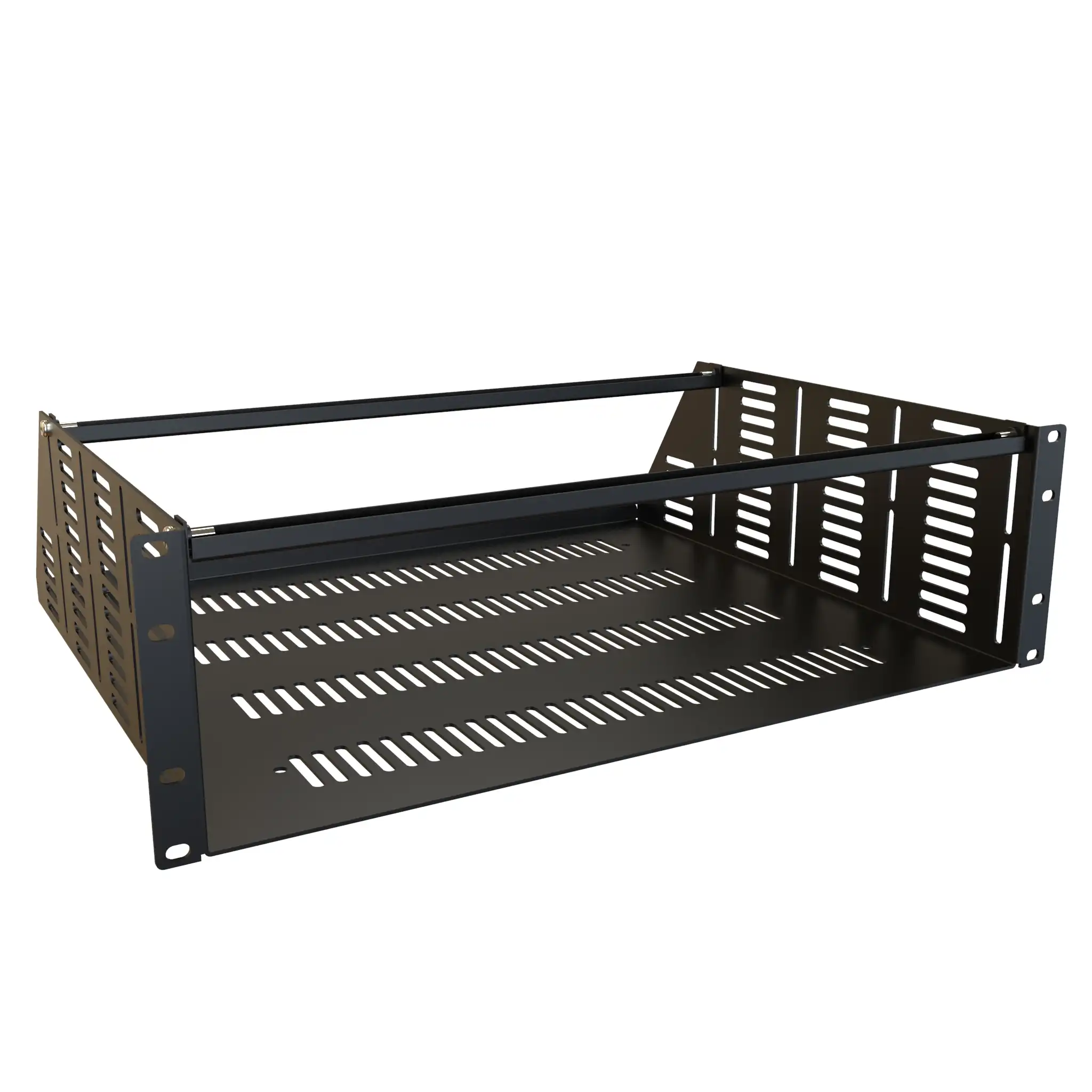

RACS Series - Two Post Mounting Clamping Shelf
200 lbs. (91 kg.) Weight Capacity
This rack shelf has been designed to provide superior ventilation for cable and satellite boxes and other components that generate considerable heat - featuring two adjustable foam-padded mounting bars for securing components without fear of scratches.
Product Features:
- Allows easy rack mounting of narrow equipment or items that do not have rack mounting capabilities.
- Includes two adjustable gaskets (to protect from scratching the clamped equipment) and horizontal clamps.
- Designed for equipment requiring front adjustment without sliding around the shelf (i.e. pushbuttons, jacks, plugs, dials, etc).
- Choice of four clamp locations depending on the depth of the equipment.
- Choice of three shelf heights.
- Mounted equipment height should be at least 1/2" shorter than shelf "panel height" to allow clearance for the gasket clamps.
- It provides a sturdy shelf without obstructing upward heat movement.
- The rear lip is folded up for extra strength and doubles as an equipment retainer.
- 14 gauge steel construction.
- 200 lbs (91 kg) load rating.
- Rugged textured RAL 9005 black powder paint finish.
- TAA compliant for GSA schedule purchases.
- RoHS and REACH compliant.
- Manufactured in North America.
Hammond Manufacturing Rack Solutions
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Rack Solutions product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.
Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
