Product Information
Part No NWC27U2436WABK
Product Series NWC Series
RoHS Compliant Yes
REACH Compliant Yes
Share Me - NWC27U2436WABK Share on Facebook Share on Twitter Share on LinkedIn

NWC27U2436WABK | NWC Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

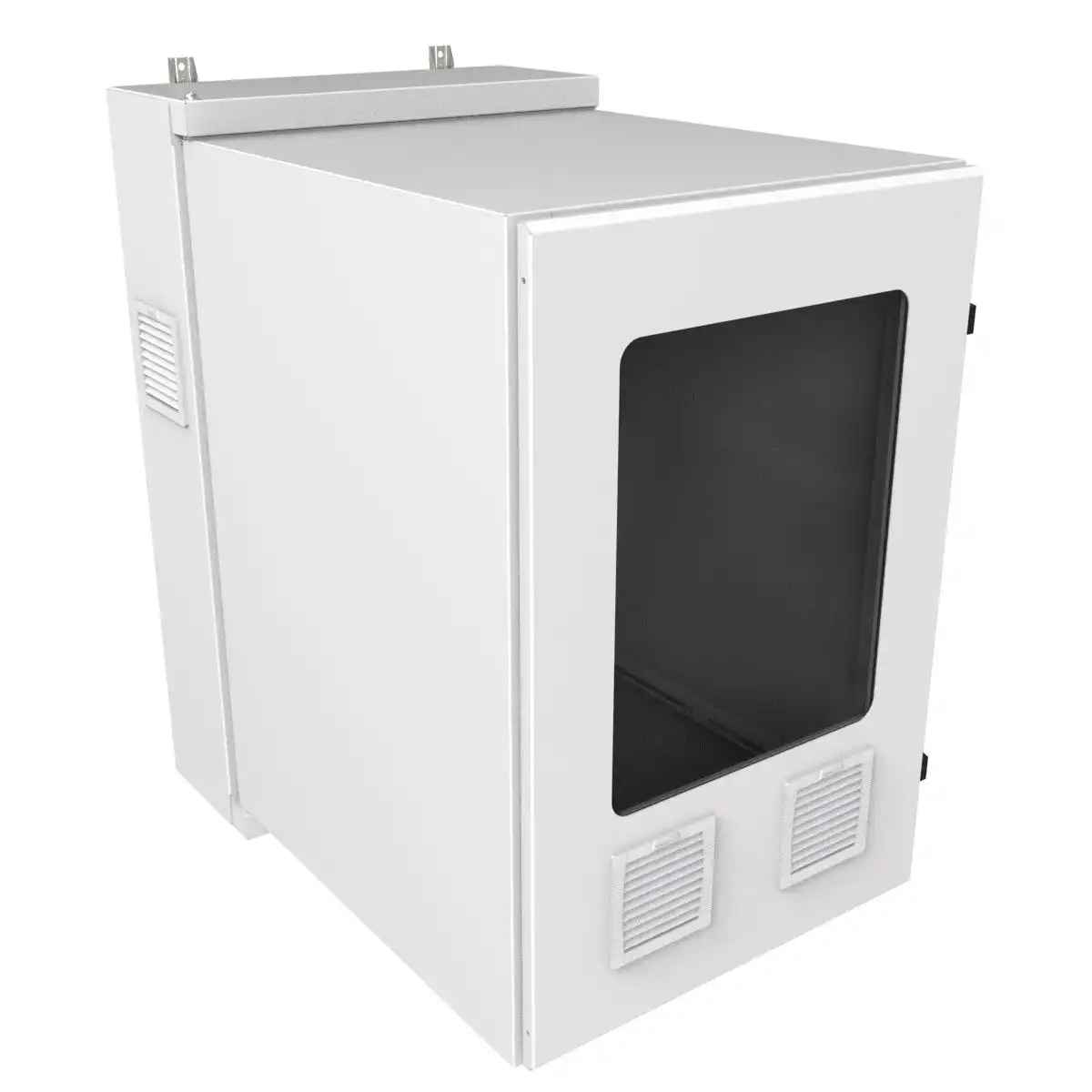

NWC Series - Swing-Out Industrial Wall Mount Rack Cabinet
UL2416 Type 12 Rated For 350 lbs. (158 kg.). Seismic Rated Up To 200 lbs. (90.72 kg.)
Product Information
How To Purchase Products
Customisation Services

Product Features
  • Dual access to equipment via the double hinge design for indoor industrial applications.
  • The main body and door swing from right-to-left.
    • The entire cabinet can be flipped 180 degrees to mount and swing left-to-right.
  • Available in three options:
    • "N" Version comes without climate control or cutouts.
    • "F" Version includes rear and door filters that maintain UL Type 12 ratings. Compatible with fan kit DNFK1AC120 for rear always-on hot air exhaust.
    • "A" Version comes bundles with a 900-1300 BTU DTS3021A115LG air conditioner (shipped inside the cabinet) along with a cord.
  • All options are available with a solid or window door.
  • The door is removable and swings more than 120°.
  • The middle section swings to 130° to access the rear pan, allowing for easy maintenance.
  • Both door and middle section include draw-latching locks, keyed alike.
  • The heavy-duty rear pan is constructed in 14 gauge welded steel and features a hinge pin for easy installation.
  • A heavy-duty wall mounting back pan can be used for cable entry.
  • The rear of the enclosure includes factory-installed external mounting feet positioned sixteen (16) inch centers.
  • Two (2) pairs of adjustable depth threaded 10-32 EIA compliant rack rails.
  • Bonding studs are provided on the door, body and back pan.
  • Dedicated bonding and grounding points that also provide drill-less mounting of electrical utility boxes. Ground Cable Kit (GRDKIT Series) is sold separately.
Product Specifications
  • Constructed in 14 gauge steel.
  • Window door constructed with UV resistant polycarbonate material.
  • UL Listed 2416 Type 12 rated with a load rating of 350 lbs. (158 kg.).
    • Complies with NEMA Type 12.
  • Independently tested to IEC 60529 and IP56.
  • Seismic rated up to 200 lbs. (90.72 kg.) of dynamic load with an Ip factor of 1.5 in accordance with the IBC 2018, CBC 2019, NBC 2018, ASCE 7-16, and ASCE 7-10.
  • Rack rails are drilled and tapped 10-32 to EIA 19" standards and are finished in a smooth powder coat.
  • Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements when the door is installed.
  • Finished in a textured RAL 7035 light grey or RAL 9005 black powder coat.
  • TAA Compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.
