Find the LEDACMSSCR here at KGA Enclosures, authorised distributors for Hammond Manufacturing Rack Solutions. Purchase or buy the LEDACMSSCR here.
LEDACMSSCR | LEDLK Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

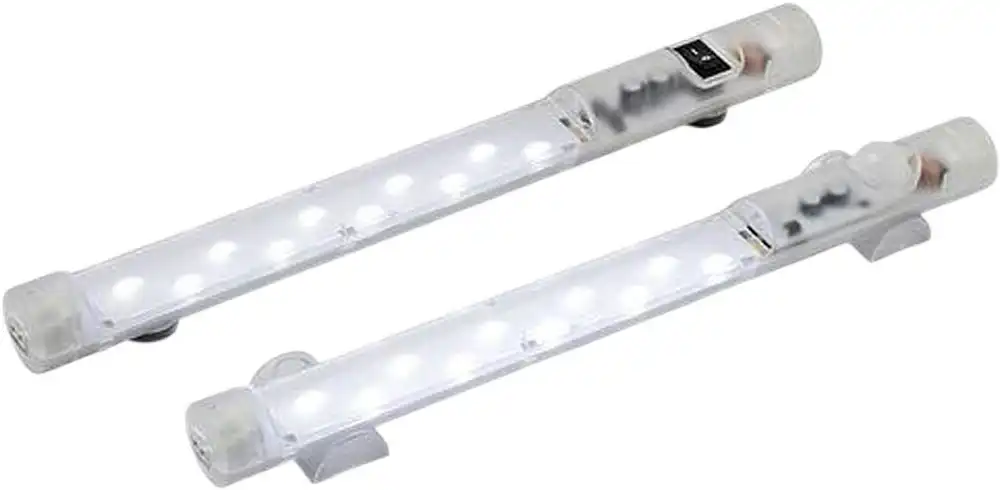

LEDLK Series - Compact LED Light Kit
The compact LED light kit provides efficient lighting solution for most enclosure applications without taking up valuable interior space. Available in magnet or screw mounting and AC or DC power options.
Product Features:
- Housing constructed in transparent plastic.
- Screw mounting and magnet mounting options.
- Rocker switch or motion sensor options.
- Easily connect up to ten (10) light kits together in a daisy chain using LEDXXCORDCON cords. (LEDACNS-ECON cannot be daisy chained).
- Connection: 2-pole plug with snap lock; AC: max. 2.5 A / AC 240 V, white connector; DC: max. 2.5 A / DC 60 V, blue connector. (LEDACNS-ECON wired directly, Cage clamp connections).
- Requires hard-wired connection using LEDXXCORDPOW power cord with leads and plug or power brick (not included). (LEDACNS-ECON wired directly, not using accessory power cord).
Product Specifications:
- Standard LED provide 400 Lm at 120° (1,200 Lm at 360° or equivalent 95W light bulb). HD LED provides 1700 Lm.
- Standard LED lamp length 13.82" (3500mm), HD LED Lamp length 23.62" (600mm).
- LED temperature 6,000 to 7,000 K.
- Operating / Storage temperature: -40°F to +104°F (-40°C to +40°C) / -40°F to +185°F (-40°C to +85°C).
- Operating / Storage humidity: max. 90 %RH (non-condensing).
- Service life: 60,000 hours. at 68°F (20°C).
- Max. 5W power consumption (~ 75 W incandescent bulb). HD LED 15W power consumption.
- Protection class / Protection type: II (double insulated) / IP20.
