Product Information
Part No GRDBAR600
Product Series GRDBAR Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - GRDBAR600 Share on Facebook Share on Twitter Share on LinkedIn

GRDBAR600 | GRDBAR Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

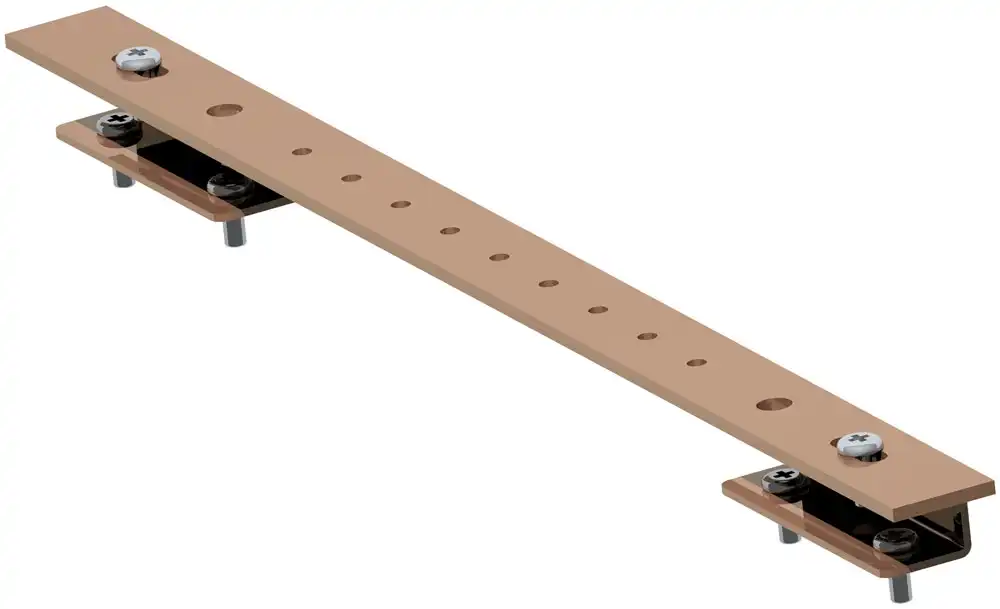

GRDBAR Series - Copper Bonding Busbar

Product Features:
  • The GRDBAR Series comes in vertical, horizontal mounting as well as horizontal rack mounting.
  • The grounding bar is made from heavy-gauge copper that attaches to the inside of an enclosure, cabinet or open frame rack to provide consolidated equipment grounds.
  • Ground points have been drilled and tapped to accommodate a #10-32 screw (included).
  • Use with the Bonding Wire Kits to bond your equipment to the Busbar.
HME Busbar Specifications:
  • Constructed of solid 0.125" Copper with 10-32 drilled and tapped holes and 1-0.312 main ground point.
  • Mounts directly to grid straps or frame mounting surface.
  • Busbar kit includes (quantities depend on product).
    • 1x Copper Busbar.
    • 10-32 x 0.5 Screws.
    • Flat washers.
Rack Mount Busbar Specifications:
  • Available in both 19" and 23" rack mounting widths.
  • Constructed of solid 0.188" Copper Bar.
  • Includes ten (10) - 10-32 drilled and tapped holes spaced at one (1) inch.
  • Includes two (2) Ø 0.31 ground lug holes.
  • Mounts directly to EIA mounting rails.
  • Busbar kit includes:
    • 1x Copper Busbar.
    • 10x 10-32 x 0.375" Screws.
    • 2x 10-32 x 0.625" Screws.
    • 2x 12-24 x 0.625" Screws.
    • 2x 0.25" Flat washers.
    • 12x #10 Flat washers.
    • 1x Instruction bulletin.
