Find the EN4DH482424WLG here at KGA Enclosures, authorised distributors for Hammond Manufacturing Rack Solutions. Purchase or buy the EN4DH482424WLG here.
EN4DH482424WLG | EN4DH Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

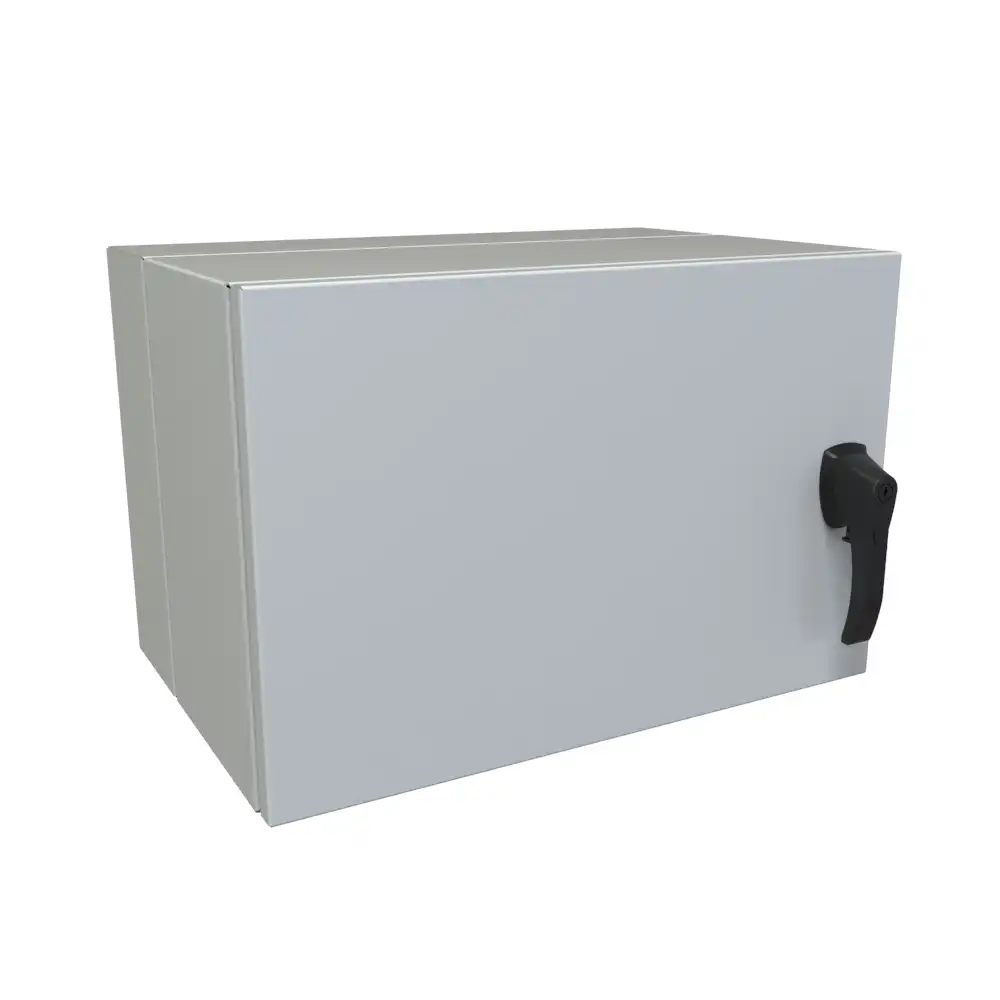

EN4DH Series - UL and NEMA Type 4, 12 Double-Hinged Wall Mount Cabinet
(Product Range Discontinued - Information Only)
Product Features
- Dual access to equipment via the double hinge design.
- Allows for 120 degrees of access to both the front and rear of equipment, allowing for easy maintenance.
- A heavy-duty wall mounting back pan can be used for cable entry and includes collar stud provision for an optional inner panel.
- The rear of the enclosure can be mounted with optional external mounting feet.
- The interior latch releases the center section for added security; no tools are required.
- Both solid and window door options include a combination key and padlock handle for added security.
- One (1) pair of threaded 10-32 EIA compliant rack rails with cable pass-through are included.
- Includes starter pack (25) 10-32 screws.
- Rails are adjustable and can be installed at your desired location.
- Additional rails are available and sold separately.
- Bonding studs are provided on the door, body, and back pan.
Product Specifications
- Constructed in 14 gauge steel.
- Smooth continuous welded seams without knockouts, cutouts, or holes.
- Seamless poured-in-place gasket for added protection in both indoor and outdoor environments.
- Window door constructed with UV-resistant polycarbonate material.
- Zinc-plated rack rails are drilled and tapped 10-32 to EIA 19" standards.
- Finished in a textured RAL 7035 light grey powder paint.
- RoHS Compliant.
Product Standards
- UL 508A Type 1, 3, 3R, 4, 12.
- CSA Type 1, 3, 3R, 4, 12.
- Complies with:
- NEMA Type 3R, 4, 12.
- IEC 60529 and IP66.
