Product Information
Part No DRZ477
Product Series DRZ4 Series
Technical DrawingsDXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - DRZ477 Share on Facebook Share on Twitter Share on LinkedIn

DRZ477 | DRZ4 Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

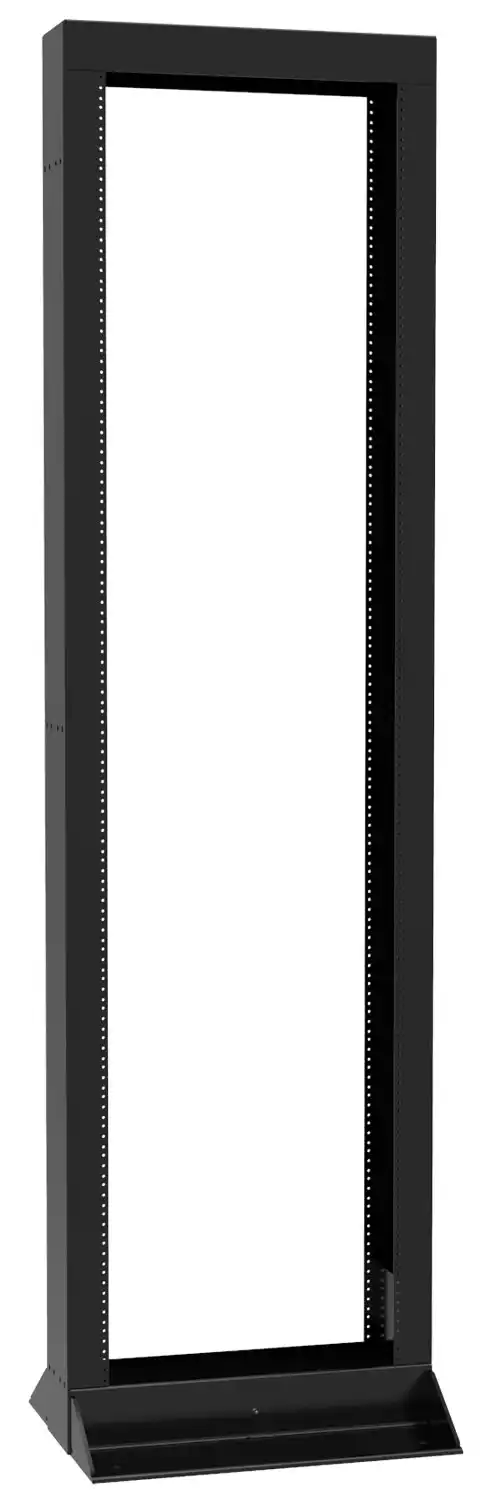

DRZ4 Series - GR-63-CORE Seismic 2-Post Open Frame Rack
UL2416 Rated For Up To 2,000 lbs. (907 kg.). Seismic Rated For Up To 800 lbs. (362 kg.)
Product Information
How To Purchase Products
Customisation Services

Product Features:
  • The rugged design was engineered to perform in the most critical seismic environments.
  • Increased overall width of 22.75" provides additional side-to-side load strength.
  • EIA compliant 10-32 front and rear tapped (6.00" deep) rails with 19" mounting.
    • Includes marked rack unit dividers to aid in equipment mounting.
  • 2 sets of side mounting holes on the side of the rack allows from Hammond cable managers to be mounted facing front and rear.
  • The side mounting holes can also be used to gang racks together.
  • Includes 2 pairs of integrated 10-32 ground studs spaced at 5/8" apart. Stud pairs are located conveniently at both ends of the rack. The upper location is centered inside the upper channel, and the lower location is centered on the front base of the rack. This upgrade ensures a secure and easy ground lug attachment.
  • Includes top bracket mounting holes that are compatible with top cable accessories.
  • Includes large base for freestanding support of equipment.
  • Finished in smooth black powder paint.
Product Specifications:
  • Constructed in 10-gauge steel (rails) reinforced with a structural angle base for the maximum structure.
  • UL Listed 2416 load rated for up to 2,000 lbs (907 kg). Static load tested to 8,000 lbs (3.628 kg).
  • Dynamic (seismic) load rated for up to 800 lbs (362 kg) of equipment installed and 50 lbs (22 kg) of cable weight. Requires a seismic bolt-down kit such as the C4K-Z4 (sold separately). Independently tested and certified to exceed established Seismic Zones 4 NEBS™ Telcordia® GR-63-CORE testing standards.
  • Finished in smooth RAL 9005 black powder coating. Complies with the Greenguard guidelines for indoor air quality.
  • TAA-compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North American within an ISO 9001:2015 certified facility.
