Product Information
Part No DC4R4436SP
Product Series DC4R Series
Technical DrawingsDXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - DC4R4436SP Share on Facebook Share on Twitter Share on LinkedIn

DC4R4436SP | DC4R Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

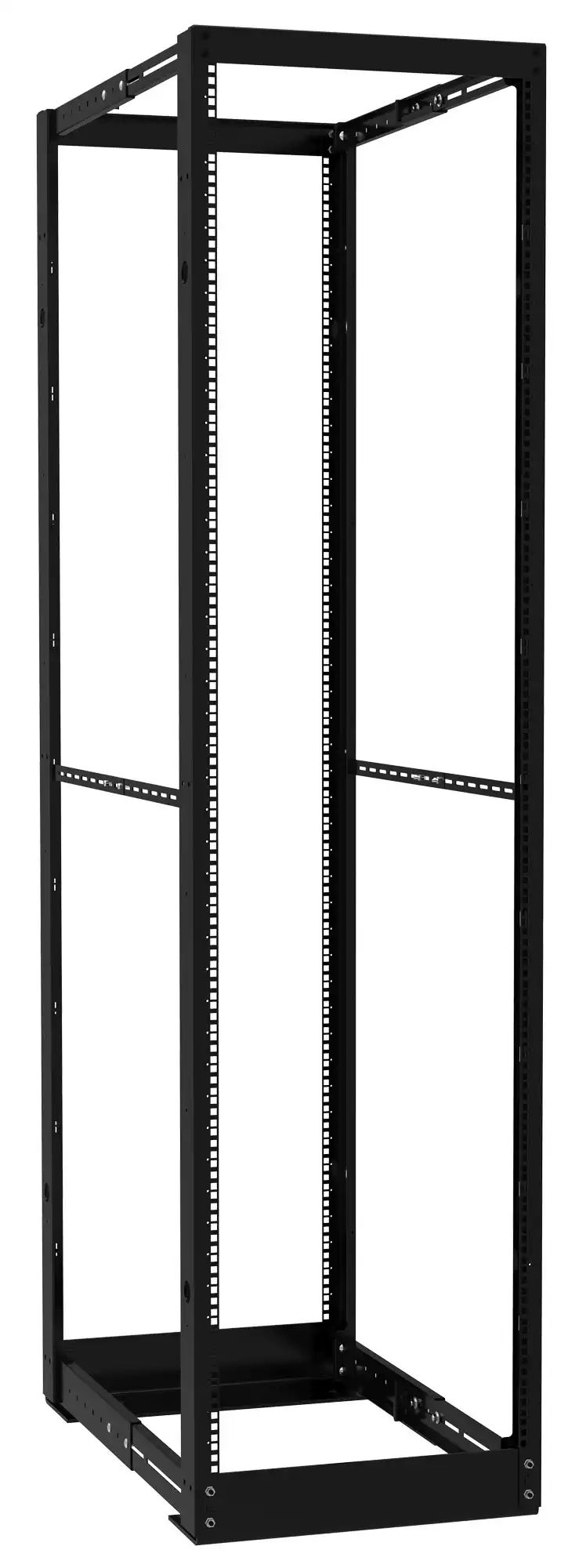

DC4R Series - 4-Post Open Frame Rack
2,000 lbs. (907 kg.) Weight Capacity
Product Information
How To Purchase Products
Customisation Services

The Hammond DC4R Series, Open Rack, is one of the most economical solutions to house IT equipment in wiring closets or data centers. When the wiring closet is locked and accessed by a limited number of people, full cabinets with locking doors and side panels may be be required, resulting in significant cost savings. If you're building a Homelab, the DC4R24 is ideal.
Product Features:
  • Available in 24U and 44U mounting heights.
  • Ships unassembled for easy handling and shipping protection.
  • The self-square design makes for a short assembly time.
  • For 44U height, add optional third or fourth pair of rails DC4RPR44 to provide additional adjustable mounting depths.
  • Optional solid side panels for added security.
  • 4 pairs of integrated 10-32 grounded studs at the rack's front and rear. Stud pairs are conveniently spaced 5/8" apart and located across from each other inside the rail channel. For added convenience, 2 pairs are loctaed near the top of the rack, while the others near the bottom.
  • Rail depth L-bracket restricts the installer from over-extending the rack. This ensures the integrrity of the rack.
  • 1 set of 2 horizontal cable manager bars. Additional cable manager bars are available by ordering part number DC4RSHCM.
  • 2 pairs of 19" mounting EIA-compliant rails.
    • Square hole rail version ships with a 50-pack of screws and cage nuts CAGKIT1032-50.
    • 10-32 Threaded rail version ships with a 50-pack of screws SCREW1032-50.
    • Includes marked rack unit dividers to aid in equipment mounting.
Product Specifications:
  • Rack rails are constructed in 12-gauge welded steel. Base angles are constructed in 1/4 steel plates.
  • Finished in smooth RAL 9005 black powder coating. Complies with the Greenguard guidelines for air quality.
  • 2,000 lbs (907 kg) static load rating.
  • TAA-compliant for GSA Schedule purchases.
  • RoHS and REACH Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.
