Product Information
Part No CAGKITM6-100
Product Series CAGKIT Series
RoHS Compliant Yes
REACH Compliant Yes
Share Me - CAGKITM6-100 Share on Facebook Share on Twitter Share on LinkedIn

CAGKITM6-100 | CAGKIT Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

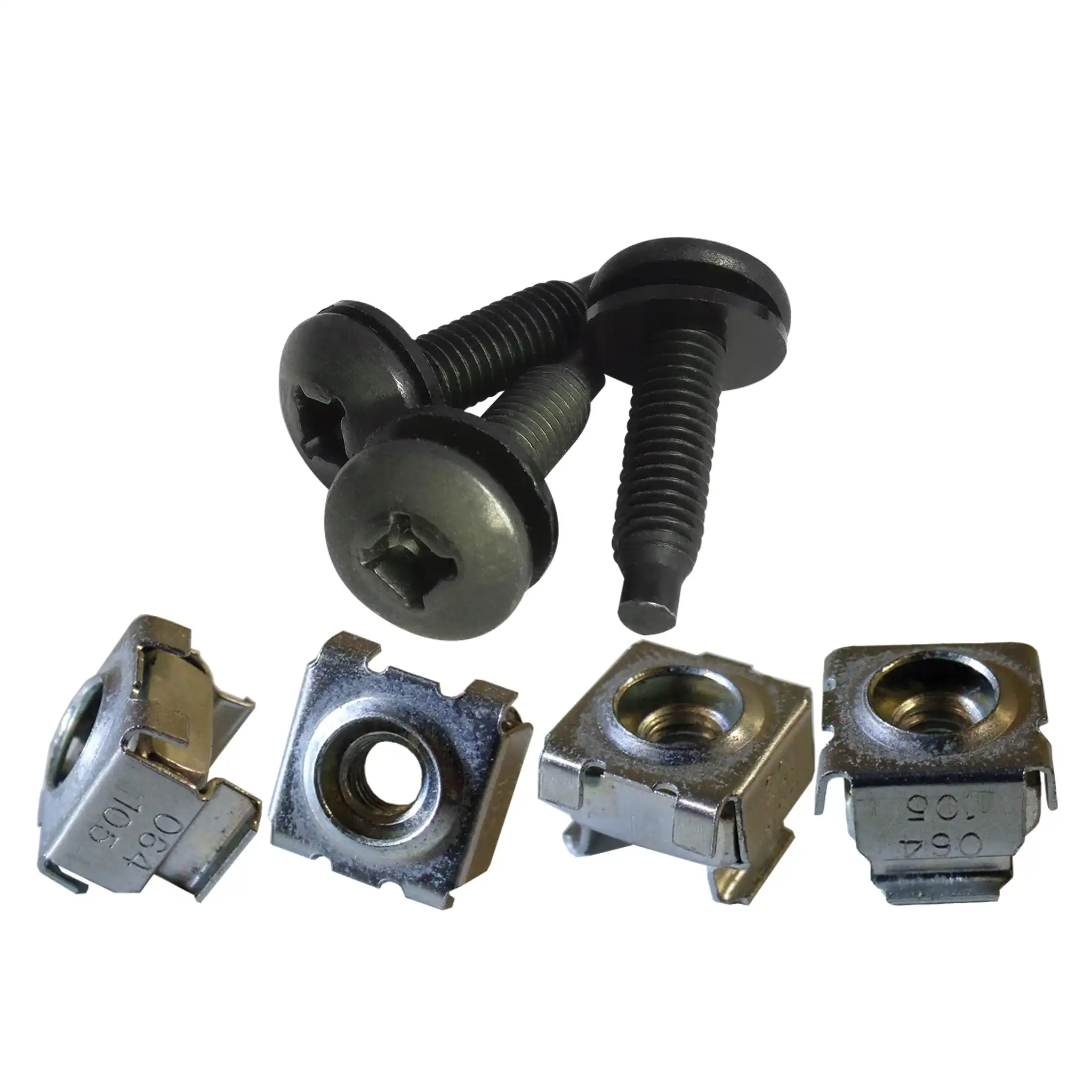

CAGKIT Series - Mounting Screw and Cage Nut Combo-Pack

Product Features:
  • This combo-pack is available in 10-32, 12-24 or M6 mounting screws and cage nuts.
  • Convenient to have when installing rack-mount equipment in server (square hole) rails.
  • The pack includes an equal number of 0.750" length black rack screws and zinc plated cage nuts for square hole punched panel rails.
Quadrex Truss Oval Head Screw:
  • Ø0.186 Diameter.
  • 0.75" length.
  • Machine screw with full dog point.
  • UNF-2A Threaded.
  • Heat-treated low-carbon steel to ANSI B18.6.3 standard.
Captive Flat Washer Constructed Of Black Nylon 6/6:
  • Outside Diameter: 0.429"-0.4389".
  • Thickness: 0.030"-0.040".
Cage Nuts:
  • Constructed of zinc-plated SAE 1050-1065 spring steel.
  • 0.375" (9.54mm) square hole punched panel rails.
  • Heat-treated through austempering.
  • Recommended torque spec. 31.4 +/- 20% inch-lbs.
  • Maximum load rating will vary depending on rail mounting and cabinet load rating.
