Product Information
Part No BRS2P2324BK
Product Series BRS Series
Technical DrawingsDXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - BRS2P2324BK Share on Facebook Share on Twitter Share on LinkedIn

BRS2P2324BK | BRS Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

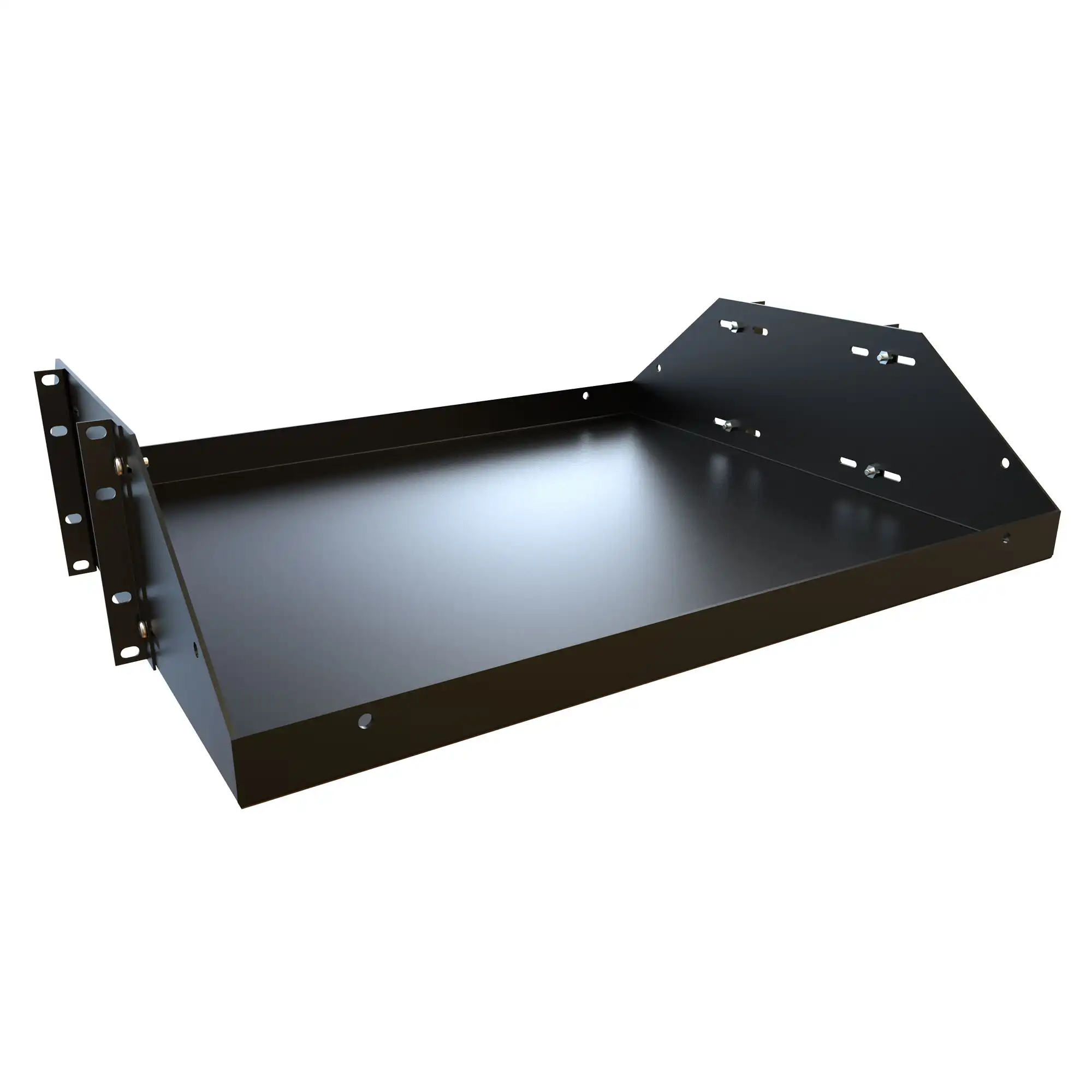

BRS Series - Two Post Heavy Duty Battery Shelf
550 lbs. (250 kg.) Weight Capacity

Product Features:
  • Designed for use with the heavy-duty DNRR Series and DRZR Series double-tapped two (2) post racks.
  • Constructed of heavy-duty 12-gauge steel.
  • Use to support heat chassis or batteries for DC battery array.
  • Choice of 19" or 24" deep.
  • The front and rear lips are folded and welded for extra strength and liquid retainer.
    • For a similar design that is light-duty and vented, see the DNRM Series.
  • Finished in textured RAL 9005 black powder paint.
  • 550 lbs (250 kg) load rating.
  • TAA compliant for GSA schedule purchases.
  • RoHS and REACH compliant.
  • Manufactured in North America.
