Product Information
Part No APBS194UBK
Product Series APBS Series
Technical DrawingsDXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - APBS194UBK Share on Facebook Share on Twitter Share on LinkedIn

APBS194UBK | APBS Series | Hammond Manufacturing Rack Solutions | KGA Enclosures Ltd

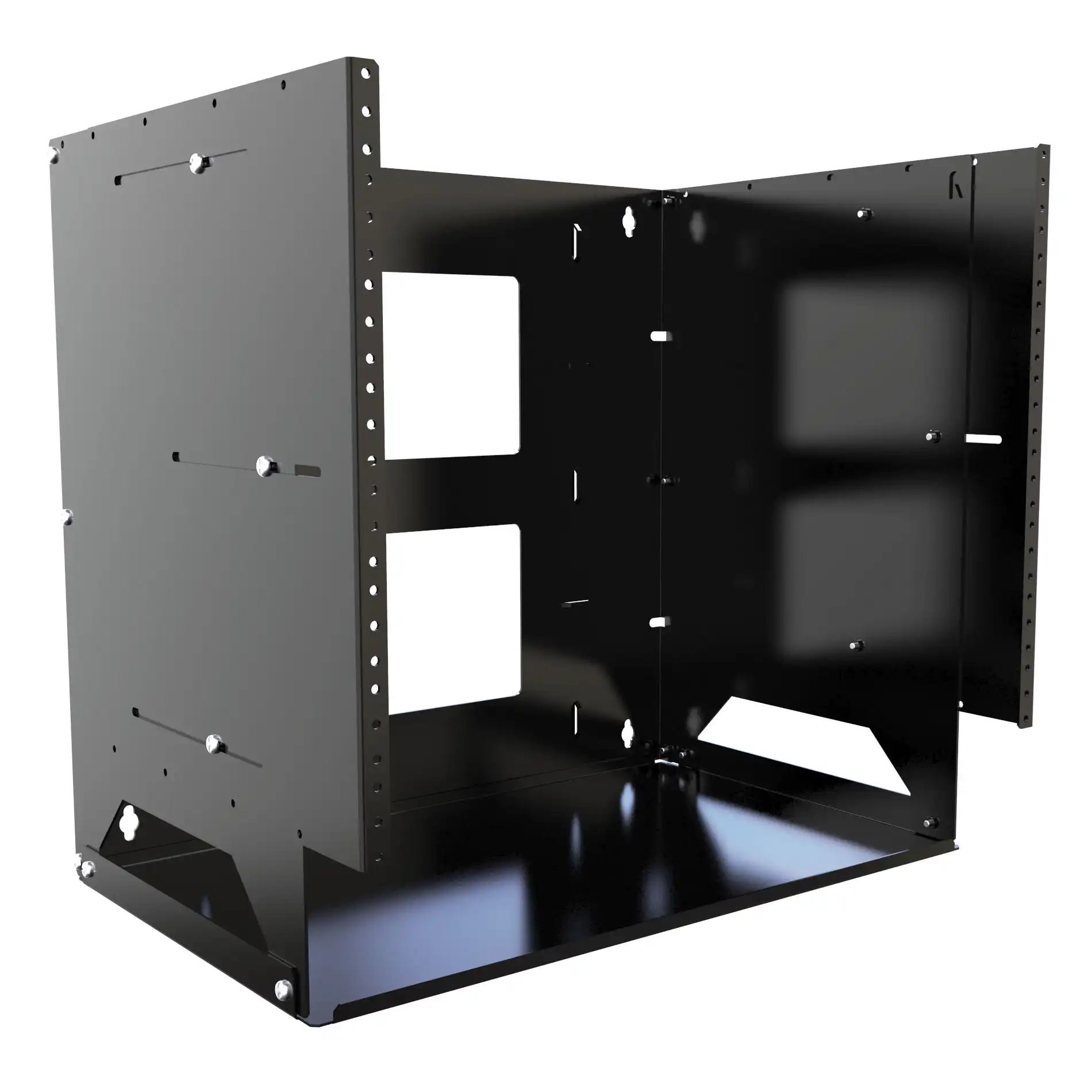

APBS Series - Adjustable Depth Wall Rack With Shelf
Rugged 100 lbs. (45 kg.) Weight Capacity

Product Features:
  • Available in 4U and 8U mounting heights. Both sizes include 3.5" (2U) of space for non-rack mounting equipment.
  • A 12" depth accessory shelf is included.
  • The rails vary in depth from 12" to 18" with ease, eliminating the need to disassemble the entire rack.
  • Multiple tie points for cable management and rear cable access.
  • The knockdown design allows for easy handling, lower freight costs, and better shipping protection.
Product Specifications:
  • Constructed in 14-gauge steel.
  • The 14-gauge steel mounting rails are threaded 10-32 and contain rack unit indicators.
    • SCREW1032-25, 25-pack of 10-32 mounting hardware included.
  • 100 lbs (45 kg) static load rating.
  • Finished in RAL 9005 black powder paint. Complies with the Greenguard guidelines for indoor air quality.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.
