1584T5A1 | Hammond Manufacturing Power Distribution
1584T5A1 | Hammond Manufacturing Power Distribution | KGA Enclosures Ltd

Product Price Breakdown
1+ P.O.A.
10+ P.O.A.
25+ P.O.A.
50+ P.O.A.
100+ P.O.A.
250+ P.O.A.
500+ P.O.A.
1000+ P.O.A.
2500+ P.O.A.
In Stock Prices shown excludes VAT
Product Information
Part No 1584T5A1
Product Series 1584 Series
ColourAnodised/Black
MaterialAluminium/Steel
Rated Voltage120 VAC
Rated Current (Amps)15
Switch TypeNo Switch. Power Indicator Light
Total Outlets5
Outlet Type5-15R
Plug Type5-15P
Cord IncludedYes
Cord Length (feet)6
Shielded CordNo
Surge ProtectionNo
Rotated OutletsNo
Hospital GradeNo
MeteredNo
Outlets (Front)5
Outlets (Rear)0
RoHS Compliant Yes
REACH Compliant Yes
Technical DrawingsSTP     DXF     PDF
Share Me - 1584T5A1 Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1584T5A1 | 1584 Series | Hammond Manufacturing Power Distribution | KGA Enclosures Ltd

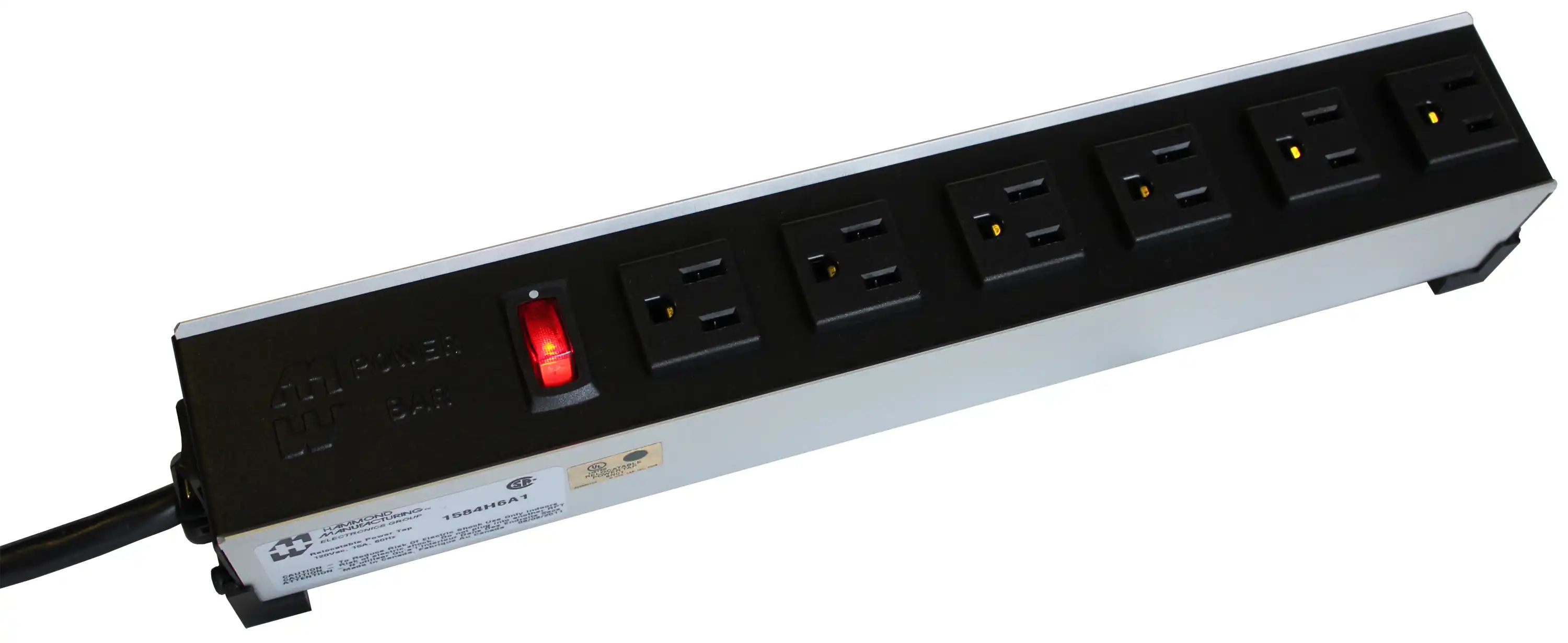

1584 Series - Heavy Duty Outlet Strip
15A | 125V | 5-15R Outlets

Product Features
  • Built to meet the rugged requirements of commercial and industrial use.
  • All metal housings - tough extruded aluminium case with a black powder paint coated steel cover.
  • Heavy duty NEMA 5-15R receptacles.
  • Mounting feet (with keyhole slots) allow temporary work station mounting if desired.
  • On-Off switch is rocker type with pilot light (on units with on-off switch). A red pilot light is used to indicate power on (on units with no switch).
Product Specifications
  • Heavy duty 14 gauge wire cord - 14/3 SJT type for extreme temperature range and integral moulded plug.
  • Plug types available are NEMA 5-15P straight blade or NEMA L5-15P locking type.
  • Includes 15 Amp, 125 volt resettable circuit breaker to prevent accidental line overload.
  • UL/cUL Listed STandard UL1363 File No. E166039 and CSA C22.2 No. 308-14 and CSA C22.2 No. 0.4-04.
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.
