Product Information
Part No 1583H8E1BKDP
Product Series 1582E DP Series
ColourBlack
MaterialSteel
Rated Voltage100-240VAC (TUV), 120-240VAC (UL), 10A, 50/60Hz
Rated Current (Amps)15
Switch TypeOn/Off Rocker Switch
Total Outlets8
Outlet TypeC13
Plug TypeC14
Cord IncludedNo
Cord Length (feet)15
Shielded CordNo
Surge ProtectionNo
Rotated OutletsNo
Hospital GradeNo
MeteredNo
Outlets (Front)0
Outlets (Rear)8
RoHS Compliant Yes
REACH Compliant Yes
Technical DrawingsSTP     DXF     PDF
Share Me - 1583H8E1BKDP Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1583H8E1BKDP | 1582E DP Series | Hammond Manufacturing Power Distribution | KGA Enclosures Ltd

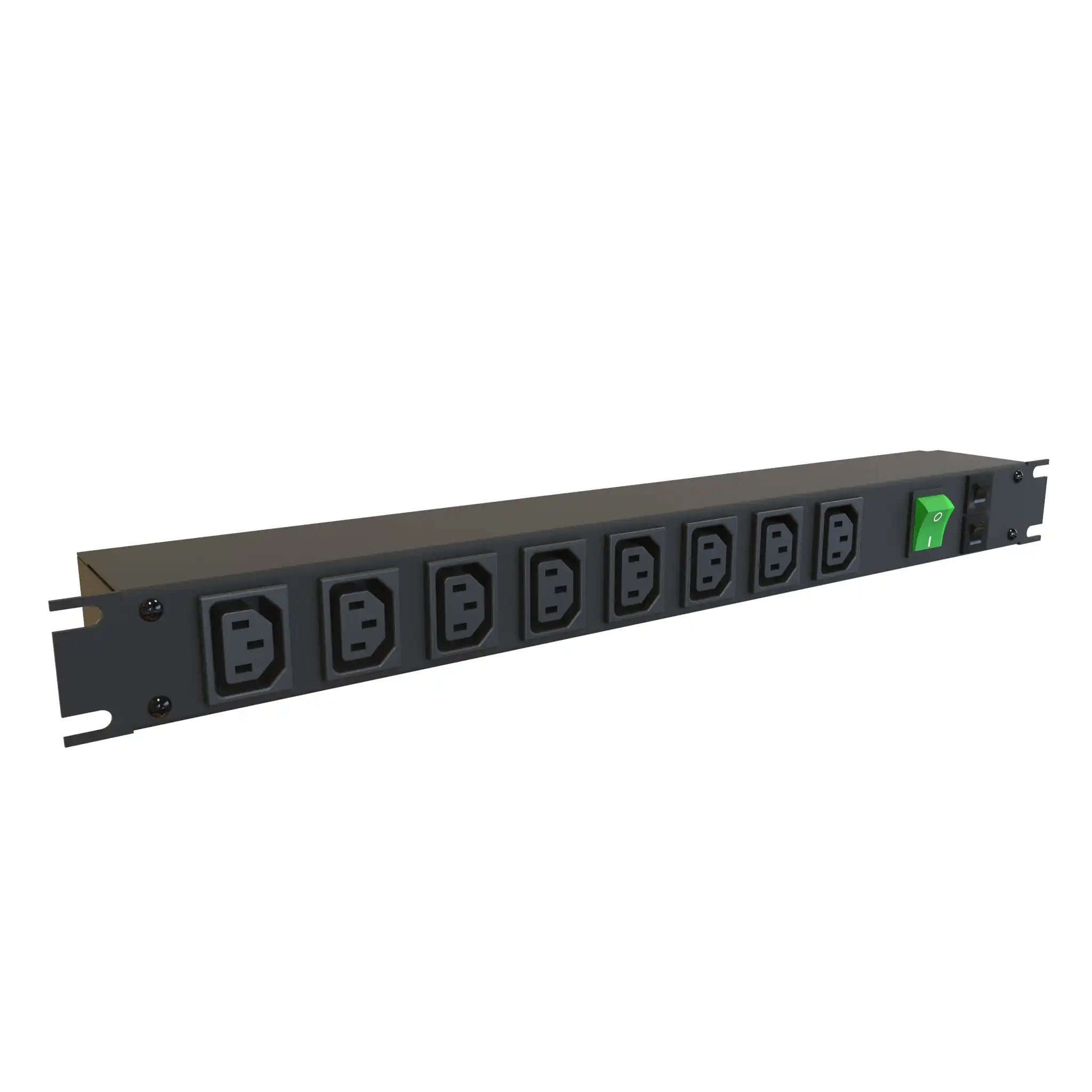

1582E DP Series - Rack Mount Basic PDU
10A Double Pole | Single-Phase 100-240V | Front or Rear Facing C13 Outlets

Product Features
  • On-Off Switch is rocker type (double pole, single throw) with green light.
  • Rated 100-240VAC (TUV), 120-240VAC (UL), 10A, 50/60Hz.
  • Designed for power distribution on front or ear of unit with IEC power cords.
  • 1U horizontal 19" rackmount installation.
  • All steel housings with black powder coat. Complies with the Greenguard guidelines for indoor air quality.
Product Specifications
  • Includes 10A circuit breakers to prevent accidental line overload.
  • cULus Listed UL 62368-1 (2nd Edition), 2014-12-01, and CAN/CSA C22.2 No. 62368-1-14 (2nd Edition).
  • TÜV-SUD Certified to EN 62368-1:2020/A11:2020, and IEC 62368-1:2018.
  • TÜV-SUD tested for EMC Compliance to EN 55032:2015+A11:2020 (CISPR 32:2015+A1:2019) and EN 55035:2017+A11:2020 (CISPR 35:2016).
  • CE compliant to the European Low Voltage Directive 2014/35/EU.
  • CE compliant to the European EMC Directive 2014/30/EU.
  • UKCA compliant to British Electrical Equipment (Safety) Regulations 2016 (S.I. 2016/1101).
  • UKCA compliant to British Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091).
  • TAA compliant for GSA Schedule purchases.
  • RoHS Compliant.
  • Manufactured in North America.
