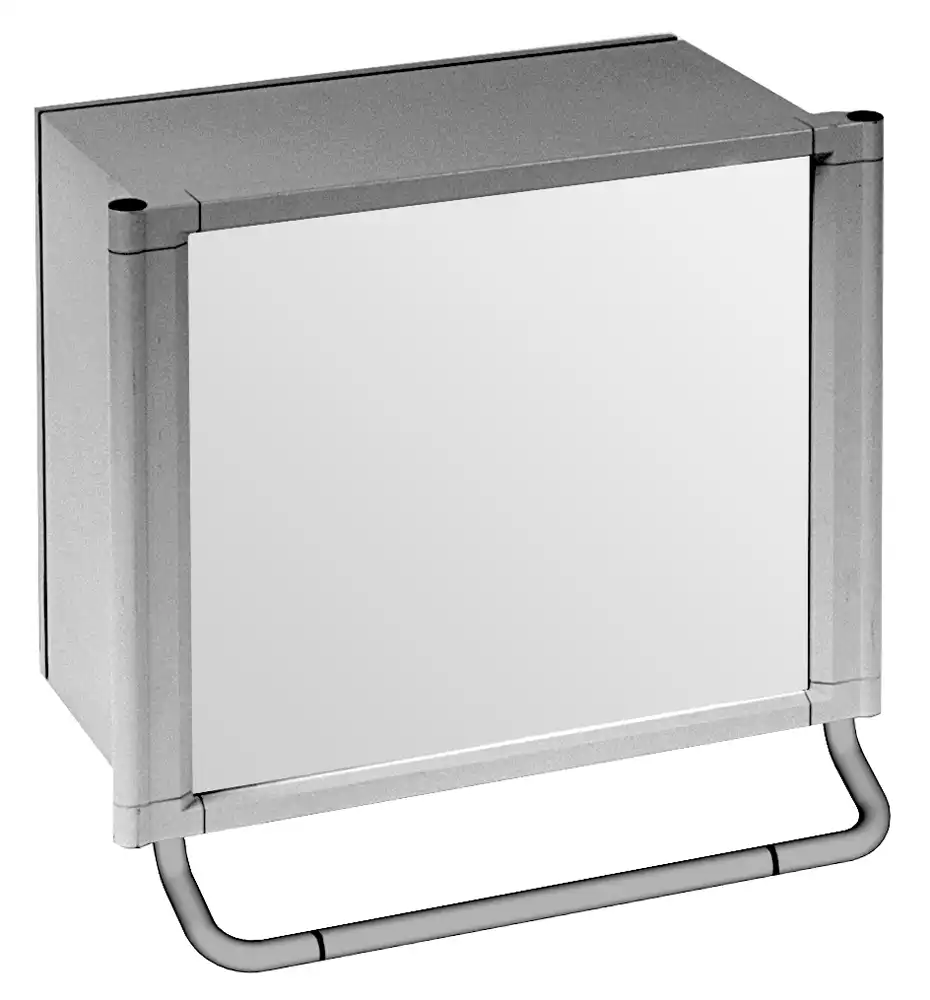

ECP Series - Eclipse Command System - NEMA 12
Command Enclosures
Product Application:
- Designed to enclose electronic controls, instruments and components in indoor environments where dirt, dust, oil and water my be present.
- Ideal for use with suspension systems.
- Multiple mounting provisions and full front mounting space provide for ideal operator interface.
- Smooth flush surfaces and attractive finishes compliment high tech equipment.
Product Construction:
- Formed from 16 gauge steel.
- Smooth, continuously welded seams ground smooth.
- Door stiffeners are designed to also permit additional mounting options.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- Reversible rear door is secured with slotted quarter turn fasteners.
- Door frames have zinc die-cast corners with extrusion pressed aluminium profiles.
- Door front panels are 3mm aluminium.
- Oil resistant gaskets are permanently secured.
- Bonding stud provided on door and grounding stud installed in enclosure.
- Quarter turn latches formed from mild steel.
- Formed steel hinge with stainless steel hinge pins.
- Fastening is recommended with optional Tara Plus or 50/680 suspension systems.
- Optional red handle easily mounts horizontally to bottom of enclosure front frame. Order separately.
- Heavy duty re-inforcing plate included.
Product Finish:
- Finished in RAL 7040 grey powder coating.
- Door panel is natural aluminium.
Product Standards:
- UL 508A Type 12.
- CSA Type 12.
- Complies with:
- NEMA Type 12 and 13.
- IEC 60529, IP54.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. The entire Hammond Manufacturing range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.
To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you.
To purchase any product or for more information on any product offered, simply call (+44) 01535 636856 or E-Mail: sales@kgaenclosures.com, where we will be happy to assist you.
Hammond Manufacturing Product Ranges
- View - Hammond Enclosures Range
- View - Hammond Electrical Enclosures Range
- View - Hammond Power Distribution Range
- View - Hammond Rack Systems Range
- View - Hammond Transformers Range
- View - Ritec Plastic Enclosures Range
Information/Purchase Request
For more information on any product, or to purchase/buy any product, please email sales@kgaenclosures.com and include the following:
- Company / Contact Name
- Full Delivery Address
- Contact Telephone Number
- E-Mail Address
- Confirmation of Part Number and Quantities Required
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some small projects are done utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk screening services allow for the addition of text, logos, and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product and also to give the final product a more elegant finish.
Share This Page
| Product Data Sheet |
|---|
| Product Options |
| Part No | Brand | Product Information | 1+ | 10+ | 25+ | 50+ | More.... |
|---|---|---|---|---|---|---|---|
| ECP12126 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| ECP12168 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| ECP161610 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| ECP162010 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| ECP202412 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| ECP20246 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| Contact us for pricing and stock confirmation. |
|---|
| Please use the Product Data Sheet for product accessory compatibility. |
|---|
| Product Accessories |
| Inner Panels |
|---|
| Part No | Brand | Product Information | 1+ | 10+ | 25+ | 50+ | More.... |
|---|---|---|---|---|---|---|---|
| ECPP1212 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| ECPP1216 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| ECPP1616 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| ECPP1620 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| ECPP2024 | Hammond | Please click link for more information | P.O.A. | P.O.A. | P.O.A. | P.O.A. | More.... |
| Contact us for pricing and stock confirmation. |
|---|
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to deliver quality products made to your exact specifications.
Why choose Hammond Manufacturing to modify your enclosure
- Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
- Typically the minimum order quantity is 25 pieces. This can vary depending on product and service required. Please note KGA Enclosures does not add on any charges.
- Hammond has an experience enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
- Hammond Manufacturing helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your deign required. Many orders will also include a fast delivery of sample enclosures for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular modification services offered:
- Holes
- Cutouts
- Tapping and countersinking.
- Pressed-in hardware (Studs, Standoffs)
- Silk screening
- UV Printing
- Special colours
- Special length extrusions
- Pre-Installed accessories
- Available services vary by product
