Hammond Manufacturing Electrical Enclosures | 1418 FS Series | MSE - Freestanding Enclosures

1418 FS Series - Type 12 Mild Steel Freestanding Enclosure
Continuous Hinge Door With Handle
Product Application:
  • Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment.
  • Provides a degree of protection from falling dirt, dust oil and water.
  • Available with front access only or both front and rear access.
  • A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.
Product Construction:
  • Formed 12 gauge steel.
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Lifting eyes provide for easy enclosure handling.
  • Doors are supported with heavy gauge continuous hinges.
  • Doors are secured with a three point latch and operated with a key locking automotive type handle.
  • Latch rods are equipped with rollers for easier door closing.
  • Oil resistant gaskets are permanently secured.
  • Provision for light kit mounting.
  • Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.
  • A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
  • A literature pocket is provided for the inside of the door (two pockets are provided for dual access units).
Product Finish:
  • Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 grey powder coating.
  • Optional inner panels, rails, frames and supports are available in white powder coating.
Product Standards:
  • UL 508A Type 12.
  • CSA Type 12.
  • Complies with:
    • NEMA Type 12.
    • IEC 60529, IP54.
Hammond Manufacturing Electrical Enclosures
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Electrical Enclosures product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
Purchase / Buy Products
For more information or to purchase / buy any product or for pricing and stock confirmation, please call (+44) 01535 636856, or email sales@kgaenclosures.com. Please include the following where applicable:
  • Company / Contact name.
  • Full delivery address.
  • Contact telephone number.
  • E-Mail address.
  • Confirmation of part numbers and quantities required.
We aim to answer all E-Mail inquiries as quickly as possible.
Payment Options
KGA Enclosures Ltd accepts the following payment methods:
  • Bank Transfer (BACS)
  • Credit / Debit Card Payments
  • PayPal Payments
  • Cheques
Payment terms are available for all customers, which can be negotiated, contact us for more information.

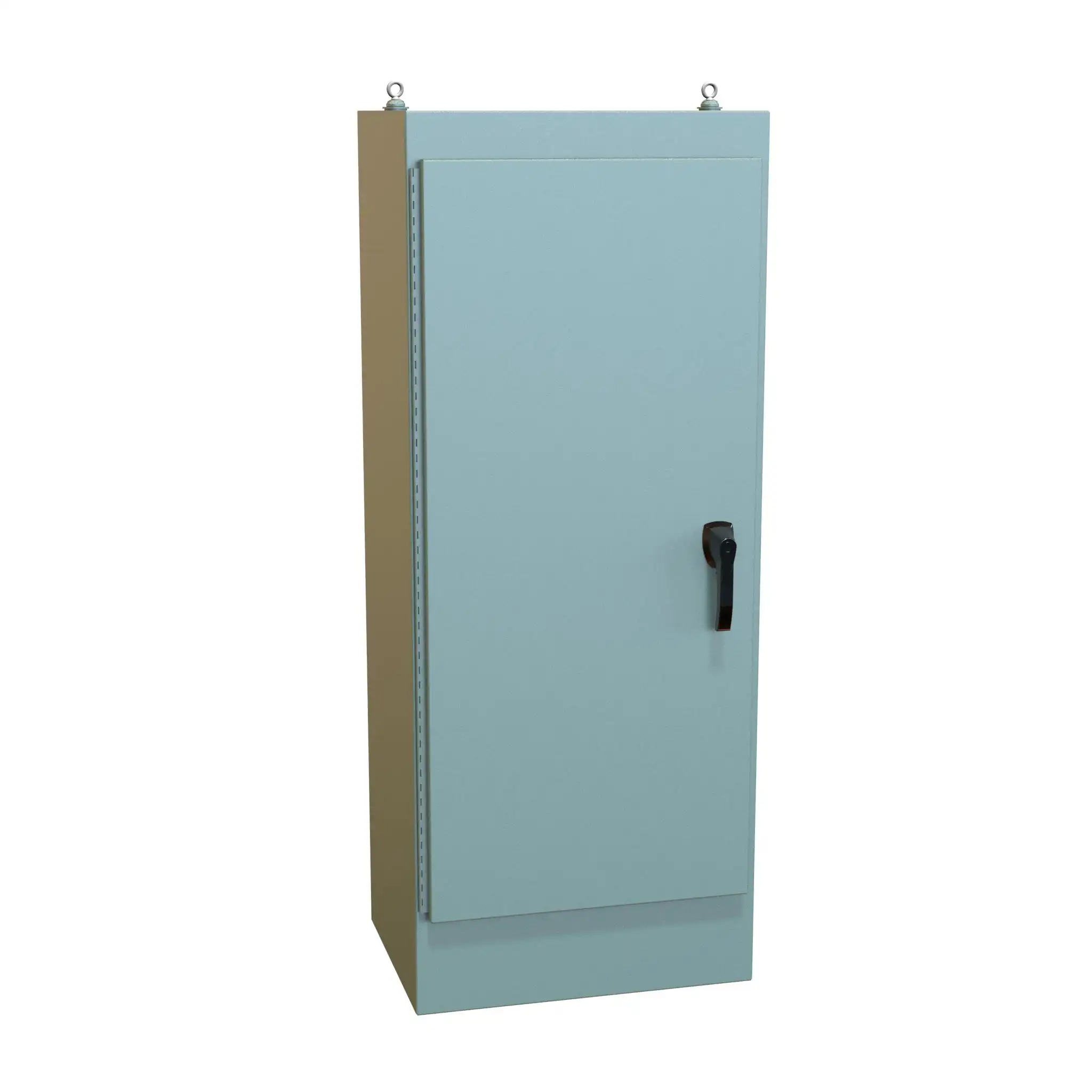

1418 FS Series - Hammond Manufacturing Electrical Enclosures at KGA Enclosures Ltd - Click for a larger image
Hammond Manufacturing Product Ranges
Did you know, the entire Hammond Manufacturing product range is all available here at KGA Enclosures Ltd. If you find a lower price, we aim to match and beat it. For more information on any range, please click the link below.
Product Customisation Options
What makes KGA Enclosures Ltd different from most other larger distributors is that we offer full customisation services on all enclosures and accessories. All customisation work is undertaken by the relevant supplier, (some smaller projects are done by utilizing outside contractors) at their own manufacturing facilities. These services include milling or punching holes and slots into the enclosure or end plates for cables, connectors, switches, etc. Printing and silk screening services allow for the addition of text, logos and graphics onto both the enclosure and end plates, to allow the end user to easily identify the product and also to give the final product a more elegant finish. Contact us today to see how we can assist you.
Share This Product Range:
Share Product Range on Facebook Share Product Range on Twitter Share Product Range on LinkedIn

The 1418 FS Series from Hammond Manufacturing Electrical Enclosures are available at KGA Enclosures, a trusted and authorised distributor for Hammond Manufacturing Electrical Enclosures.

Product Options
Part No Brand Product Information 1+ 10+ 25+ 50+ More....
Single Access
1418TW18 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418TY24 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418W18 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418W24 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418W30 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418W36 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418X18 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418X24 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418Y18 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418Y24 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418Y30 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418Y36 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418YW20 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418YY20 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418YY24 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418YY36 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
Dual Access
1418WD24 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418WD30 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418WD36 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418XD24 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418YD24 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418YD36 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418YYD24 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
1418YYD36 Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
Contact us for pricing and stock confirmation.
Please use the Product Data Sheet for product accessory compatibility.
Product Accessories
Inner Panels
Part No Brand Product Information 1+ 10+ 25+ 50+ More....
60TWFW Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
60TYFW Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
72WFW Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
72XFW Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
72YFW Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
90YFW Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
90YWFW Hammond Please click link for more information P.O.A. P.O.A. P.O.A. P.O.A. More....
Contact us for pricing and stock confirmation.
Hammond Manufacturing - Customisation Services
Modified Electronic Enclosures
Almost every enclosure will need some kind of modification to be useful. In house modifications can be tedious, over complicated and a distraction from your main core business. A third party shop can add time and expense. Let us help you to delivery quality products made to your exact specifications.
Hammond Manufacturing - Customisation Services
Why Choose Hammond Manufacturing To Modify Your Enclosures
  • Hammond Manufacturing offers a wide selection and massive inventory of enclosures ready to be modified.
  • Typically the minimum order quantity is 25 pieces, this can vary depending on product and service required. Please note KGA Enclosures does not add on any extra charges.
  • Hammond has an experienced enclosure modification team and two dedicated modification facilities in North America and the United Kingdom. They are knowledgeable, available and capable.
  • Hammond helps eliminate scrap and design errors with approval drawings to confirm correct interpretation of your design required. Many orders will also include a fast delivery of a sample enclosure for your inspection. These steps ensure that your assembly fits perfectly before heading into the mass production stage.
Popular Modification Services Offered
  • Holes.
  • Cutouts.
  • Tapping and countersink.
  • Pressed-in hardware (Studs, Standoffs).
  • Silk screening.
  • UV Printing.
  • Special colours.
  • Special extrusion lengths.
  • Pre-Installed accessories.
  • Available services vary by product.
