RCBS1900813BK1 - Hammond Manufacturing Enclosures
RCBS1900813BK1 | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £134.83
10+ £124.04
25+ £121.35
50+ £117.30
100+ £115.95
250+ £114.60
500+ £113.26
1000+ £112.58
2500+ £111.23
In Stock Prices shown excludes VAT
Product Information
Part No RCBS1900813BK1
Product Series RCBS Series
SeriesRCBS
ColourBlack
Material16-Gauge Steel
Height273mm
Width533mm
Depth330mm
Rack Units5U
Mounting Height222mm
Mounting Depth314mm
Technical Drawingspdf     dxf     stp
RoHS Compliant Yes
REACH Compliant Yes
Share Me - RCBS1900813BK1 Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

RCBS1900813BK1 | RCBS Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

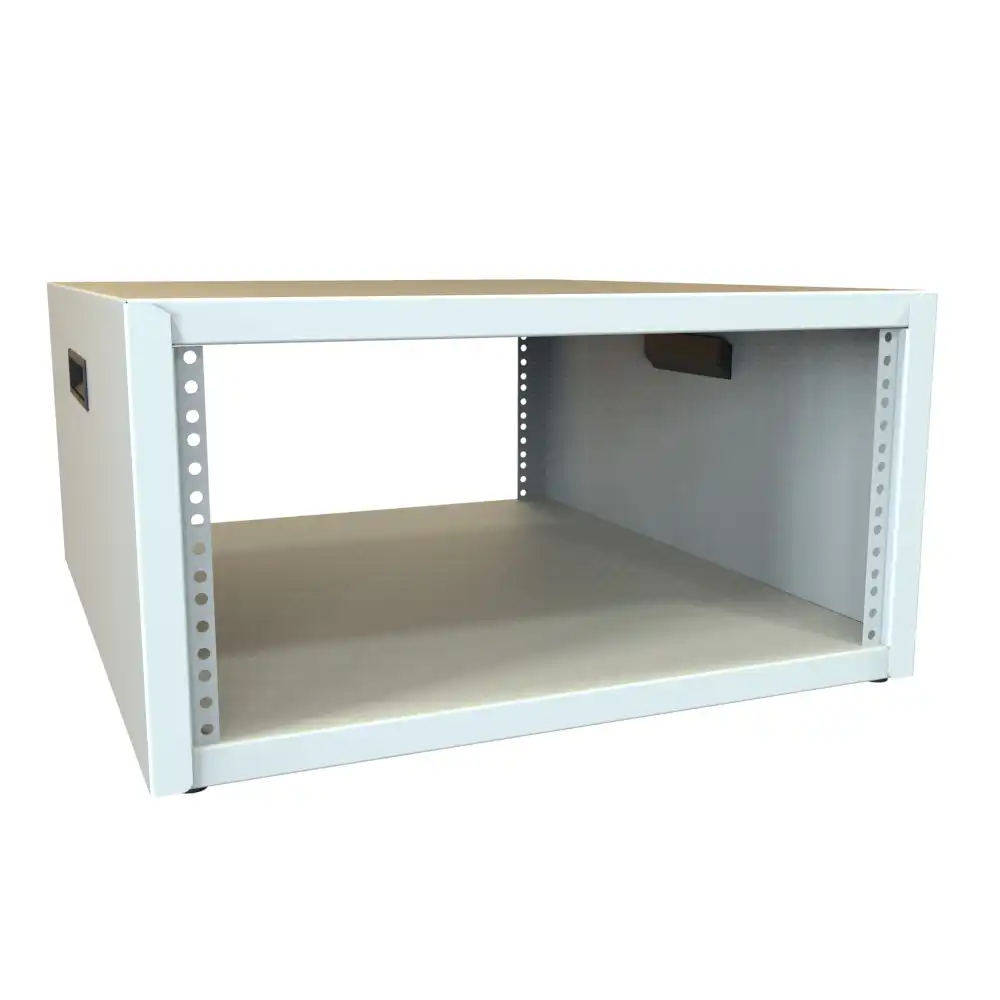

RCBS Series - Studio Rack Cabinet
600 lbs. (272 kg.) Weight Capacity

The RCBS Series has been the industry standard for desktop studio and test/measurement applications for over four decades. Fixed-depth rack rails recessed 0.375" at the front and rear are included in the fully welded frame.
Product Features:
  • Constructed in 16 gauge welded steel.
  • The fixed-depth mounting rails have EIA spaced classic round holes for clip-nut use.
  • Includes four (4) PVC non-marking feet, two (2) lifting handles, a starter pack of CLPKIT1032-10, pack of 10 screws, and clip nuts.
  • Finished in textured RAL 9005 black or RAL 7035 light grey powder coat.
    • Complies with the Greenguard guidelines for indoor air quality.
  • 600 lbs (272 kg) static load rating.
  • TAA compliant for GSA schedule purchases.
  • RoHS compliant.
  • Manufactured in North America within an ISO 9001:2015 certified facility.
Hammond Manufacturing Rack Solutions
KGA Enclosures Ltd are full authorised distributors of the Hammond Manufacturing Rack Solutions product range. This entire range is available from KGA Enclosures Ltd at great competitive pricing and with full customisation options on all applicable products.

Please Remember - Only use authorised distributors to purchase these products. Using authorised distributors will guarantee you receiving a genuine product which, by using KGA Enclosures, we can guarantee you receiving.
