BDN4XN1 - Hammond Manufacturing Enclosures
BDN4XN1 | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ P.O.A.
10+ P.O.A.
25+ P.O.A.
50+ P.O.A.
100+ P.O.A.
250+ P.O.A.
500+ P.O.A.
1000+ P.O.A.
2500+ P.O.A.
In Stock Prices shown excludes VAT
Product Information
Part No BDN4XN1
Product Series BDN Series
SeriesBDN
ColourBlack
MaterialVarious
Length28mm
Height32mm
Pipe ThreadM20 x 1.5
ContentsIndividual
Technical Drawingspdf     dxf     stp
RoHS Compliant Yes
REACH Compliant Yes
Share Me - BDN4XN1 Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

BDN4XN1 | BDN Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

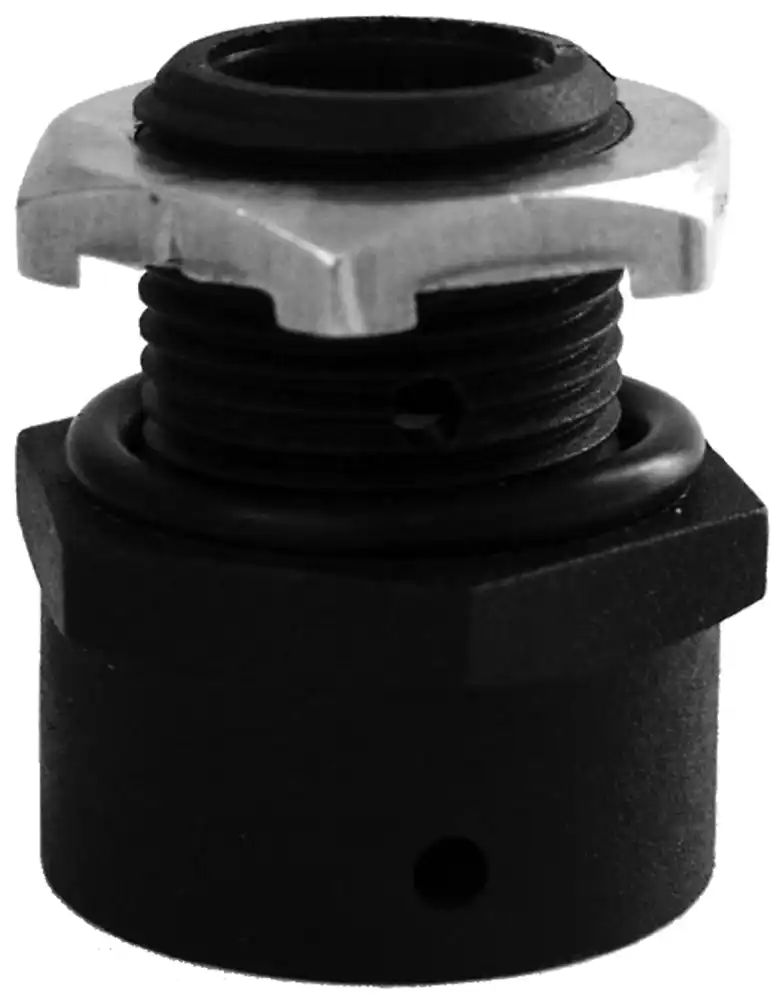

BDN Series - Pressure Compensation Plug

Product Features
  • Packaged individually.
  • Provides for controlled pressure compensation due to temperature variations (i.e. night/day operation).
  • When mounted to bottom of enclosure, this unique design provides a method of effectively draining moisture from within the enclosure.
  • Recommend two plugs per cabinet in opposite locations.
  • Pipe Thread M20 x 1.5 (minimum cutout 20.2mm / 0.80").
  • Recommended Torque 10 NM.
