Product Price Breakdown
1+ £47.95
10+ £44.12
25+ £43.16
50+ £41.72
100+ £41.24
250+ £40.76
500+ £40.28
1000+ £40.04
2500+ £39.56
In Stock Prices shown excludes VAT
Product Information
Part No 518-0910
Product Series 518 Series
Series518
ColourGrey
Material18 Gauge Steel
Width197mm
Length281mm / 248mm
Height121mm
IP RatingIP30
Technical Drawingspdf     dxf     stp     3d
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 518-0910 Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

518-0910 | 518 Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

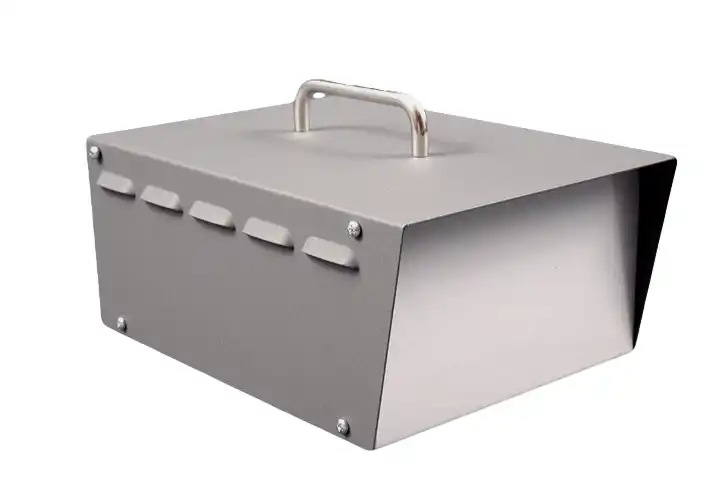

518 Series - Module Instrument

Product Features
  • 18 gauge steel base and top - for extra strength (front and back panel will not push in from mounted buttons, controls, connectors, etc).
  • Sides include one horizontal row of louvers for ventilation.
  • Choice of sloping or vertical sides by reversing case.
  • Includes an handle (part number 1427C1) and holes in the top for mounting. Also includes plastic plugs if handle is not desired.
  • Sold pre-assembled with a two tone grey powder coat finish. Top is dark satin grey. Bottom, front, and back is smooth light grey.
  • Comes with four self adhesive rubber feet and required hardware.
  • Assembled with 8 machine screws into weld-nuts for repetitive assembly and disassembly.
Assembly Screws
  • Replacement screws SC19480-50 (Pkg. of 50, Philips head - M4 x 6mm machine screws).
