516-0010 | Hammond Manufacturing Enclosures
516-0010 | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £158.32
10+ £145.65
25+ £142.48
50+ £137.73
100+ £136.15
250+ £134.57
500+ £132.99
1000+ £132.19
2500+ £130.61
In Stock Prices shown excludes VAT
Product Information
Part No 516-0010
Product Series 516 Series
Series516
ColourGrey
MaterialAluminium
Width216mm
Length365mm
Depth235mm
IP RatingIP30
Technical Drawingspdf     dxf     stp     3d
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 516-0010 Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

516-0010 | 516 Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

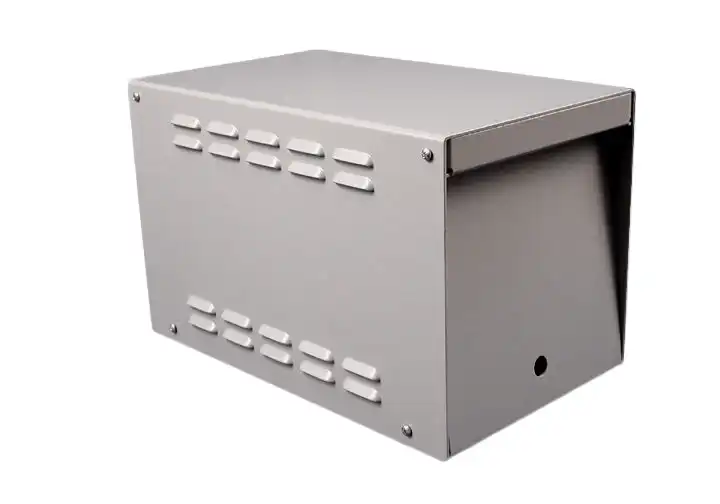

516 Series - Ventilated Transformer Enclosure

Product Features
  • Heavy duty (0.1" thick) aluminium base and top - for extra strength (front and back panel will not push in from mounted buttons, controls, connectors, etc).
  • SIdes include four horizontal rows of louvers for ventilation.
  • Includes heavy duty (0.1" thick) aluminium raised mounting panel. Mounting surface includes 8 press nuts for mounting and a 5" (127mm) x 8.63" (219mm) area.
  • Front and back are recessed near the top with flange to act as built-in lifting handles.
  • Sold pre-assembled in lightly textured, dark grey powder coat finish.
  • Comes with three cord grommets for front and rear holes and required assembly hardware.
  • Assembled with 8 self-tapping Philips head screws.
Assembly Screws
  • Replacement screws SC18609-50 (Pkg. of 50, Philips head - #8 x 3/8" screws).
