512-0900 | Hammond Manufacturing Enclosures
512-0900 | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £12.35
10+ £11.36
25+ £11.11
50+ £10.74
100+ £10.62
250+ £10.50
500+ £10.37
1000+ £10.31
2500+ £10.19
In Stock Prices shown excludes VAT
Product Information
Part No 512-0900
Product Series 511-513 Series
Series511-513
ColourTwo Tone Grey
Material18 Gauge Steel
Width76mm
Length133mm / 124mm
Height51mm
IP RatingIP30
Technical Drawingspdf     dxf     stp     3d
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 512-0900 Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

512-0900 | 511-513 Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

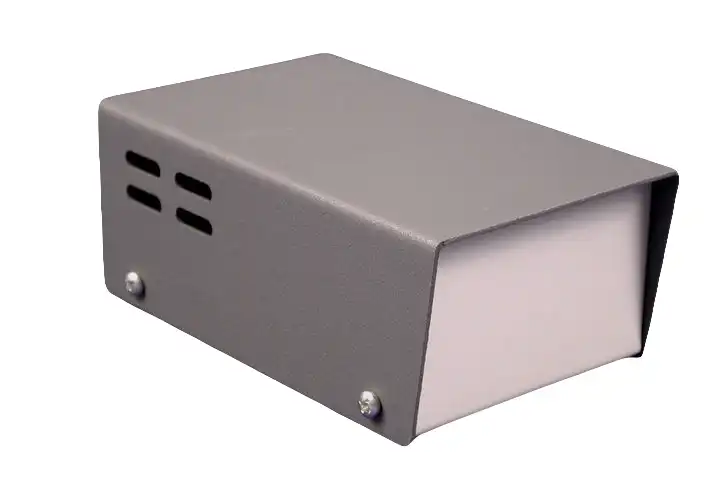

511-513 Series - Ventilated Steel Instrument

Product Features
  • 18 gauge steel base and top - for extra strength (front and back panel will not push in from mounted buttons, controls, connectors, etc).
  • Sides include two horizontal rows of ventilation.
  • Choice or sloping or vertical sides by reversing case.
  • Sold pre-assembled with a two tone grey powder coat finish. Top is dark satin grey. Bottom, front, and back is smooth light grey.
  • Comes with four self adhesive rubber feet and required hardware.
Assembly Screws
  • Replacement screws SC19482-50 (Pkg. of 50, Philips head - #6 x 1/4" self tapping screws).
