1599TABMBKBAT | Hammond Manufacturing Enclosures
1599TABMBKBAT | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £13.68
10+ £12.59
25+ £12.32
50+ £11.91
100+ £11.77
250+ £11.63
500+ £11.49
1000+ £11.43
2500+ £11.29
In Stock Prices shown excludes VAT
Product Information
Part No 1599TABMBKBAT
Product Series 1599TAB Series
Series1599TAB
ColourBlack
MaterialFlame Retardant ABS Plastic
Length169mm
Width135mm
Depth27mm
Battery Door and CompartmentYes
Removable End PanelYes
IP RatingIP54
Flammability RatingUL94 V-0
Technical Drawingspdf     dxf     stp     3d
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1599TABMBKBAT Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1599TABMBKBAT | 1599TAB Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

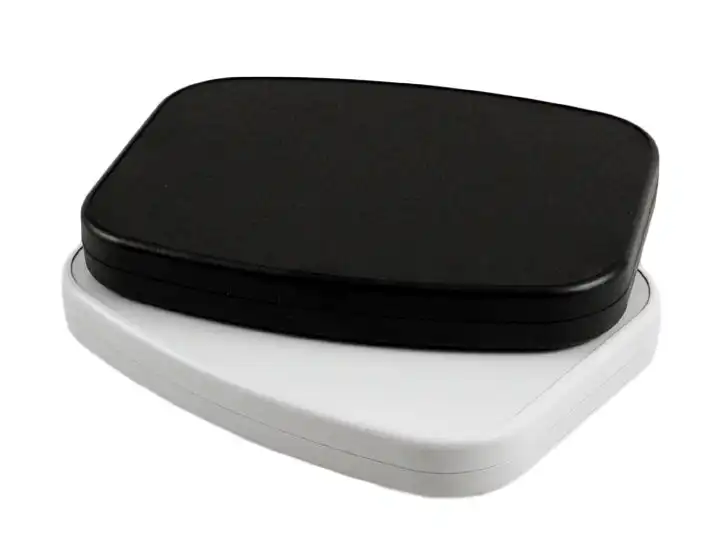

1599TAB Series - ABS Plastic Tablet Enclosures
Ergonomic Design, P.C. Board Standoffs, Battery Compartments

Product Features:
  • Low profile - ergonomically designed for a comfortable fit into the user's hands.
  • Perfect for instrument or mobile data enclosures requiring a touch screen.
  • Choice of three sizes. All sizes available with or without battery compartment.
  • Moulded from flame retardant ABS plastic, choice of black or grey - material carries a UL flammability rating of 94V-0.
  • Enclosure is assembled with six (6) - M3-0.5 x 18mm Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
  • Integral brass bushings are factory inserted into the top half of the enclosure.
  • Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54.
  • P.C. board standoffs are moulded into case top and bottom halves (see drawings for more details).
  • "M" and "L" size battery door and compartment versions (part numbers ending in "BAT") include 8 battery clips (for 4 - AA batteries) and two 9 volt (PP3) battery clips. "S" size battery door and compartment version (part numbers ending in "BAT") includes 4 battery clips (for 2 - AA batteries) and one 9 volt (PP3) battery clip.
  • Contains one removable end panel for easy modification.
  • Bottom half of enclosure includes moulded inlay for labels.
Assembly Screws:
  • Part number: 1594MS100 - 100 Pack of silver replacement cover screws, M3 - 0.5 x 18mm flat head.
  • Part number: 1594MS100BK - 100 Pack of black replacement cover screws, M3 - 0.5 x 18mm flat head.
  • Part number: 1593ATS50 - 50 Pack of optional PC board screws, #4 x 1/4" self-tapping.
  • Part number: 1593ATS100 - 100 Pack of optional PC board screws, #4 x 1/4" self-tapping.
Belt/Pocket Clips:
  • Moulded from tough nylon.
  • Includes 2 nylon screws (insulated to avoid interference).
  • Mounting template included (user drilling required).
