1599RFIEBK - Hammond Manufacturing Enclosures
1599RFIEBK - Hammond Enclosures |
| Product Price Breakdown |
| 1+ | £13.77 |
|---|---|
| 10+ | £12.67 |
| 25+ | £12.39 |
| 50+ | £11.98 |
| 100+ | £11.84 |
| 250+ | £11.70 |
| 500+ | £11.57 |
| 1000+ | £11.50 |
| 2500+ | £11.36 |
| In Stock | Prices shown excludes VAT |
Find the 1599RFIEBK here at KGA Enclosures, authorised distributors for Hammond Manufacturing Enclosures. Purchase or buy the 1599RFIEBK here.
| Product Information |
| Part No | 1599RFIEBK |
|---|---|
| Product Series | 1599RFI Series |
| Series | 1599RFI |
| Colour | Black |
| Material | Flame Retardant ABS Plastic |
| Length | 170mm |
| Width | 85mm |
| Depth | 34mm |
| Battery Door | No |
| Shielded | EMI / RFI |
| IP Rating | IP54 |
| Flammability Rating | UL94 V-0 |
| Max. P.C. Board Length | 72mm |
| Max. P.C. Board Width | 162.5mm |
| Technical Drawings | pdf dxf stp |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Share Me - 1599RFIEBK |    |
1599RFIEBK | 1599RFI Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

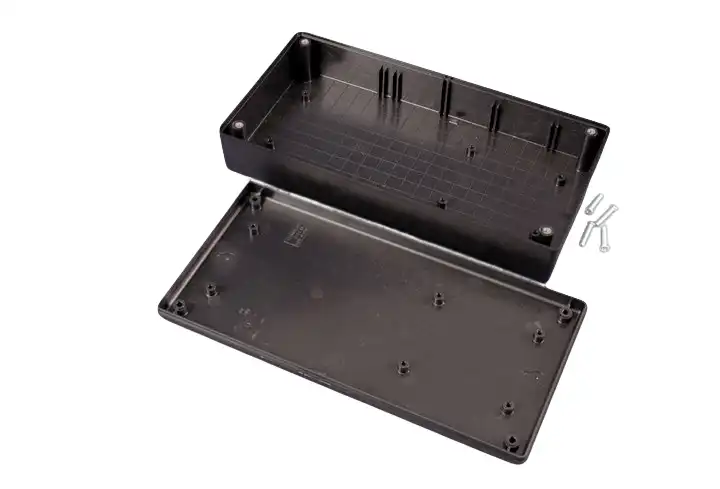

1599RFI Series - Hand-Held Plastic Enclosures With EMI/RFI Shielding
Moulded With Conductive Plastic
Product Features:
- Designed for EMI/RFI shielding applications - using conductive plastic (a compound of plastic and stainless steel fibers).
- Attractively styled and ergonomically designed for use as a handheld instrument enclosure.
- Moulded from a compound of stainless steel fibers and flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Lap joint construction provides protection against dust accumulation and splashing water.
- Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
- Designed to meet IP54.
- Note: Material is brittle - acts like Phenolic - Not for high impact use.
- Lid is secured with Philips machine screws, threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Assembly Screws:
- Part number: 1593ATS50 - Pack of 50 optional PC board screws, #4 x 1/4" self-tapping.
Related Products:
- For non-shielded applications, try the 1599 Series.
Product Safety Notes:
- Conductive plastic is NOT an insulator - these enclosures must be treated like a metal enclosure.
- Conductive plastic will act as a heating element - any significant current flow will cause the plastic to heat and produce smoke.
