Product Price Breakdown
1+ £5.14
10+ £4.73
25+ £4.63
50+ £4.47
100+ £4.42
250+ £4.37
500+ £4.32
1000+ £4.29
2500+ £4.24
In Stock Prices shown excludes VAT
Product Information
Part No 1590Z140G
Product Series 1590Z Series
Series1590Z
ColourClear
MaterialSilicone
ContentsPack of 2
For Use WithPlease See Data Sheet
IP RatingIP66
Technical Drawingspdf     dxf     stp
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1590Z140G Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1590Z140G | 1590Z Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

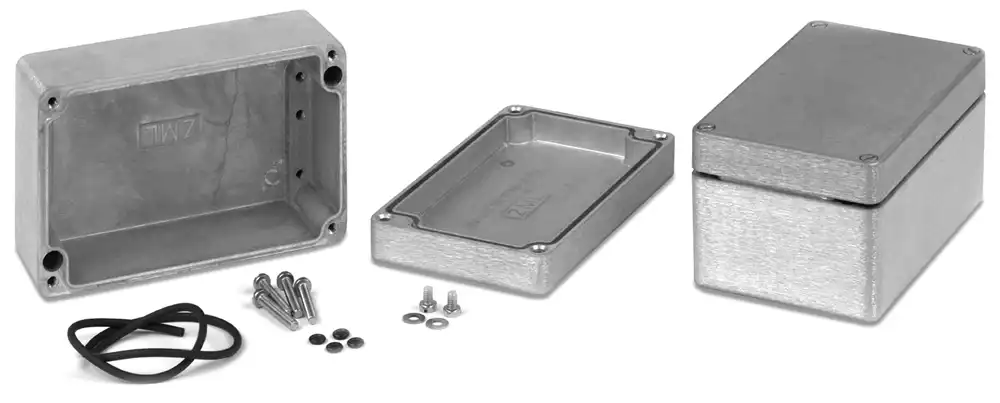

1590Z Series - Type 4X /6P Diecast Aluminium Enclosures
Watertight, Thick Wall, UL Listed

Product Features
  • Rugged, diecast aluminium alloy electronic instrument enclosure.
  • Two piece tongue and groove construction with a replaceable one piece silicone rubber gasket provides protection against ingress or dust and water. Gasket supplied loose inside the enclosure (not pre-installed).
  • Gasket has a temperature rating of -40C to +150C (-40F to 302F).
  • Ideal for repetitive opening and closing.
  • Four recessed stainless steel machine screws secure lid into tapped holes.
  • Easy to wall mount using blind through hole construction, located outside of gasket protection.
  • Lid screws are self-captivating and create threads on first installation, excluding 1590Z060, 1590Z061, 1590Z062, and 1590Z063 models.
  • 16 gauge galvanized steel inner panels are optional and available for most sizes.
  • Painted versions are painted inside and out with a tough powder paint. Choice of textured black or smooth grey (RAL 7001).
Ratings
  • cUL and UL listed.
  • Independently tested to meet IP66, IP67, and IP68 as well as NEMA Type 4, 4X, 6, 6P, 12, and 13 ratings.
    • Customers should conduct their own testing to determine suitability for any specific application.
  • All sizes except 1590Z060 carry an impact rating of IK08 per IEC 62262.
