1553WCGY - Hammond Manufacturing Enclosures
1553WCGY - Hammond Enclosures |
| Product Price Breakdown |
| 1+ | £11.99 |
|---|---|
| 10+ | £11.03 |
| 25+ | £10.79 |
| 50+ | £10.43 |
| 100+ | £10.31 |
| 250+ | £10.19 |
| 500+ | £10.07 |
| 1000+ | £10.01 |
| 2500+ | £9.89 |
| In Stock | Prices shown excludes VAT |
Find the 1553WCGY here at KGA Enclosures, authorised distributors for Hammond Manufacturing Enclosures. Purchase or buy the 1553WCGY here.
| Product Information |
| Part No | 1553WCGY |
|---|---|
| Product Series | 1553W Series |
| Series | 1553W |
| Colour | Grey |
| Side Grip Colour | Grey |
| Material | Flame Retardant ABS Plastic |
| Length | 117mm |
| Width | 79mm |
| Depth | 32mm |
| Battery Door and Compartment | No |
| IP Rating | IP65 |
| Flammability Rating | UL94 V-0 |
| Max. P.C. Board Length | 67.49mm |
| Max. P.C. Board Width | 106.23mm |
| Technical Drawings | pdf dxf stp 3d |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Share Me - 1553WCGY |    |
1553WCGY | 1553W Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

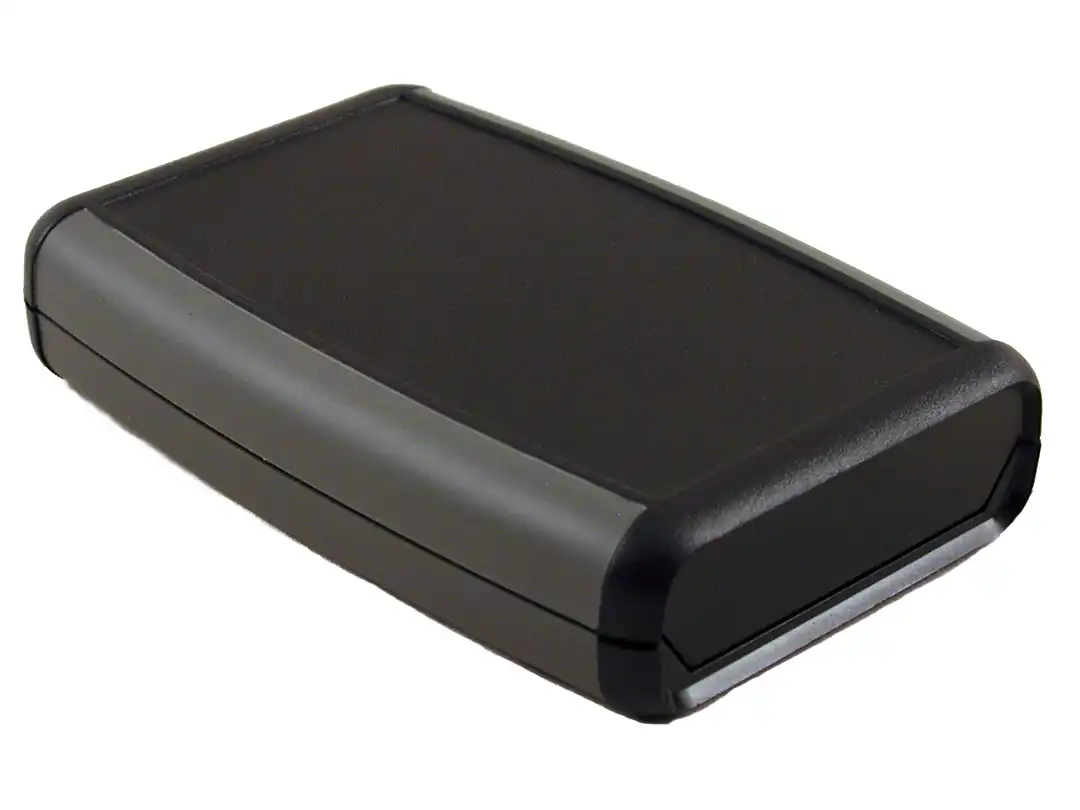

1553W Series - Water-Tight Hand-Held Enclosures
IP65 Protection, Soft Sides
Product Features:
- Ergonomically designed for hand-held comfort.
- Designed to meet IP65.
- Uses a one piece silicone gasket (installed). Enclosure utilized tongue and groove construction - moulded into the top and bottom halves.
- Choice of three sizes - in two colours.
- Moulded in flame retardant - ABS plastic (FRABS) - UV stabilized. With a grey overmould, soft plastic grip.
- Top cover is recessed for membrane display or keypad.
- P.C. board standoffs are moulded into both the top and bottom of the enclosure. Standoff screws (M2) are not included.
- Front panel is an integral part of the top half of the enclosure.
- Choice of two enclosure colours, light grey or black - soft side "grip" plastic colour is grey.
- Enclosure is secured with black Philips, stainless steel, machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Assembly hardware included - for replacement part numbers - see individual drawings.
Assembly Screws:
- Part number: 1553WTS100 - 100 pack of PC board screws.
- Part number: SC1553WB100BK - Replacement assembly screws for sizes "B" and "D". 100 pack, black stainless steel.
- Part number: SC1553WC100BK - Replacement assembly screws for sizes "V". 100 pack, black stainless steel.
Related Products:
- For similar enclosures designed for general purpose applications, including more size and colour options, try the 1553 Series.
