1552DPGKITGY - Hammond Manufacturing Enclosures
1552DPGKITGY | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £5.15
10+ £4.74
25+ £4.63
50+ £4.48
100+ £4.43
250+ £4.38
500+ £4.32
1000+ £4.30
2500+ £4.25
In Stock Prices shown excludes VAT
Product Information
Part No 1552DPGKITGY
Product Series 1552 Series
Series1552
ColourGrey
MaterialTPE and ABS Plastic
Length36mm
Width36mm
Height25mm
ContentsIndividual
For Use With1552 "D" Series Enclosures
IP RatingIP54
Flammability RatingUL94 HB
Technical Drawingspdf     dxf     stp     3d
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1552DPGKITGY Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1552DPGKITGY | 1552 Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

1552 Series - Hand-Held ABS Plastic Enclosures
Rubberized Cord Grip Option
Product Information
How To Purchase/Buy
Customisation Services

Product Features:
  • Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
  • Ergonomically designed for a comfortable fit into the user's hand. Also suitable for desktop use.
  • End panels are removable for easy modification, or can be replaced with specially designed rubberized cord grips.
  • Recessed top for membrane display or keypad.
  • Lap joint construction provides protection against dust accumulation and splashing water. Designed to meet IP54 requirements.
  • Moulded in a choice of black or grey flame retardant ABS plastic with a satin texture.
  • Unit is secured with (4) self tapping screws. Except for sizes C1 and D1, snap closures are present near the middle of the enclosure wall for added sturdiness.
  • Black enclosures come with black screws, grey enclosures come with nickel plated screws.
  • Rubberized cord grips and wall-mount holder accessories are available (sold separately).
Product Specifications:
  • Enclosures and wall mount holder accessories are moulded from flame retardant ABS plastic with a rating of UL94-V0.
  • Cable gland end panel is made from flexible TPE and hard polycarbonate, both rated UL94-V0.
  • Cable tie-down accessories are moulded from polycarbonate (UL94-V0).
Optional Accessories:

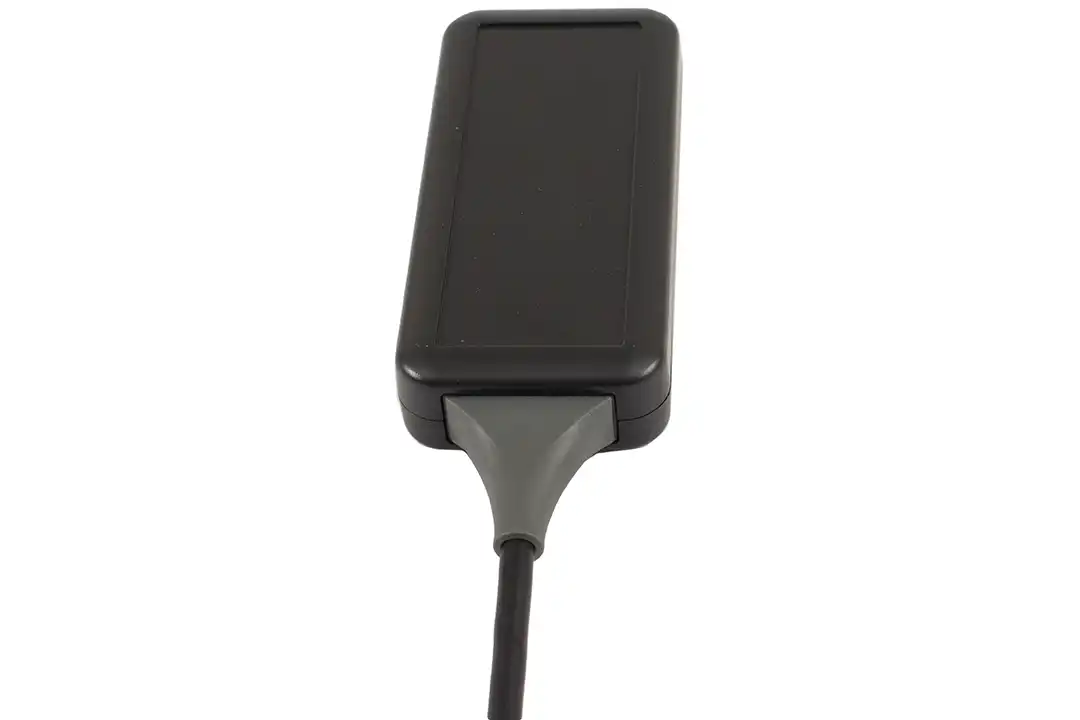

  • Cord grip end panel kit is made from TPE and Polycarbonate. It replaces the standard end panel and fits securely into the enclosure. Compatible with wire diameters from 2mm to 6mm. Cable secured inside the case with a cable tie-down and screws (included in cable gland kit).
  • Plastic wall holder accessory (sold separately) allows the enclosure to be temporarily fixed to a wall. Wall mounting holes are countersunk for flat head screws. Mounting hardware is not included and should be user-specified depending on the application.
