Find the 1550Z115F here at KGA Enclosures, authorised distributors for Hammond Manufacturing Enclosures. Purchase or buy the 1550Z115F here.
1550Z115F | 1550ZF Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

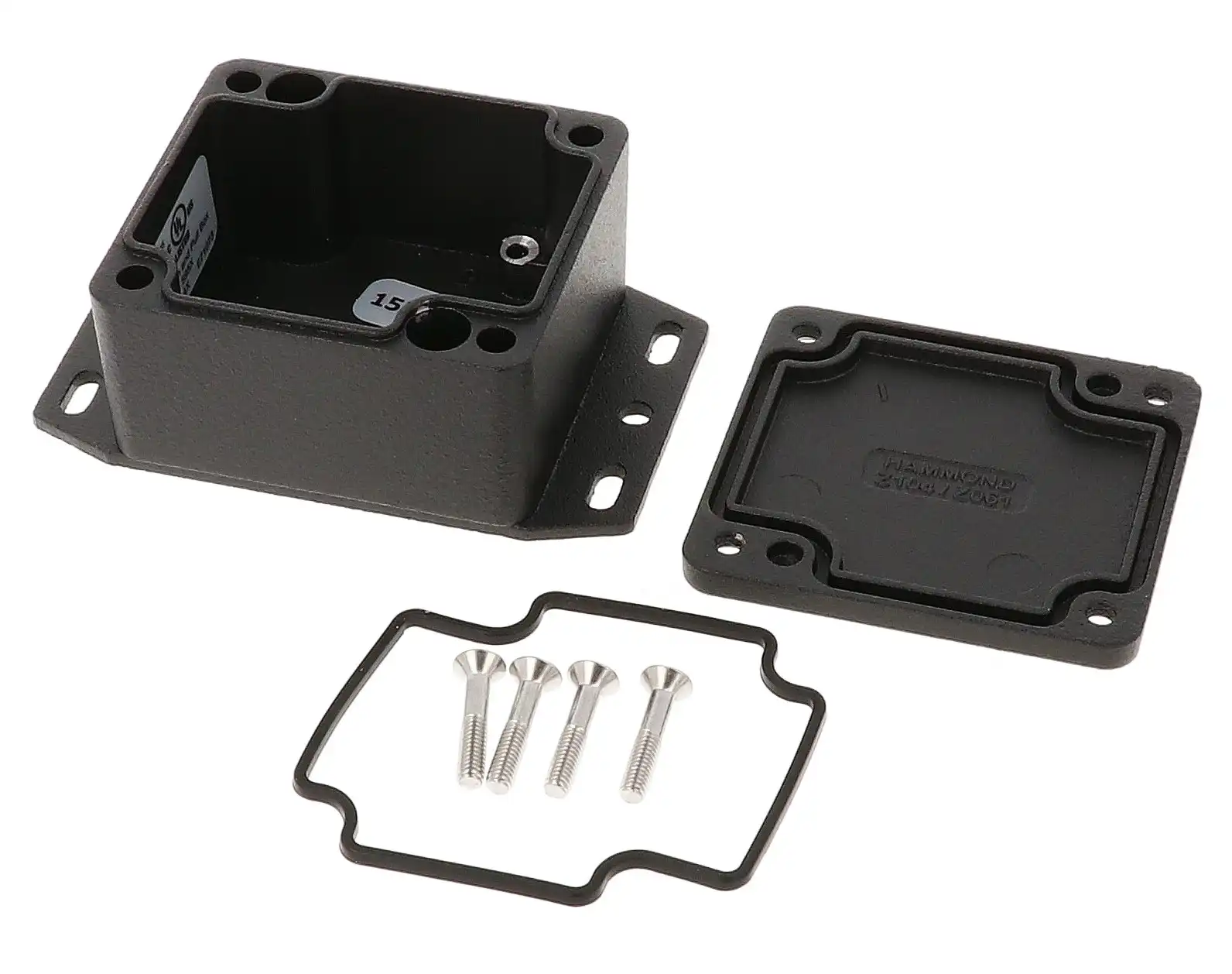

1550ZF Series - Watertight Diecast Aluminium Enclosures With Flanges
cUL and UL Listed, Thick Wall
Product Features
- Thick-wall diecast aluminium watertight electronic instrument enclosures.
- Rugged diecast aluminium alloy is tough yet easy to machine.
- Two piece tongue and groove construction for protection against access of dust and water.
- Strong spot-welded bottom flange allows for easy mounting.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Textured black version is coated with tough polyester powder for a lasting finish, even after machining. Finish is applied outside and inside the enclosure.
- Lid is secured with either two, four, or six stainless steel Philips head machine screws, depending on enclosure size.
- Lid screws are outside the gasket protection area to eliminate the need for o-rings.
- Lid screws are self-captivating on six sizes: 1550Z107F**, 1550Z108F**, 1550Z116F**, 1550Z117F**, 1550Z137F**, and 1550Z139F**. Lid holes are slightly undersized and threaded with the first installation.
- Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove.
- Gasket has a temperature rating of -40°C to +150°C (-40°F to 302°F).
- No internal ribs for easy installation of connectors without interference or additional milling.
Ratings
- cUL and UL listed under file #E71073.
- Independently tested to meet IP66, IP67, and IP68 as well as NEMA type 4, 4X, 12, and 13 ratings.
- Customers should conduct their own testing to determine suitability for any specific application.
- All sizes except 1550Z101F** carry an impact rating of IK08 per IEC62262/
