1455NC1202 - Hammond Manufacturing Enclosures
1455NC1202 | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £14.14
10+ £13.01
25+ £12.72
50+ £12.30
100+ £12.16
250+ £12.02
500+ £11.88
1000+ £11.80
2500+ £11.66
In Stock Prices shown excludes VAT
Product Information
Part No 1455NC1202
Product Series 1455NC Series
Series1455NC
ColourSilver
MaterialAluminium
Length120mm
Width103mm
Height53mm
IP RatingIP54
Max. P.C. Board Length119mm
Max. P.C. Board Width99mm
Technical Drawingspdf     dxf     stp     3d
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1455NC1202 Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1455NC1202 | 1455NC Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

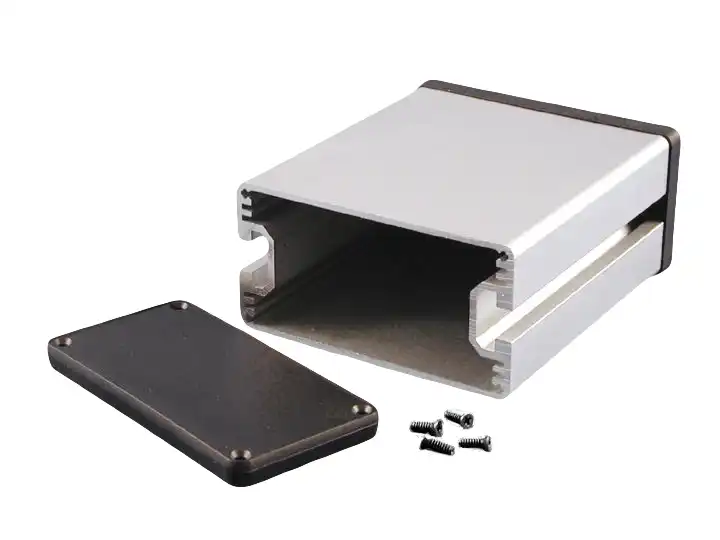

1455NC Series - Extruded Aluminium Channel Mount Enclosures
Anodised Finish, Plastic or Metal End Plates

Product Features:
  • Designed to house P.C. boards or equipment - for easy enclosure mounting to aluminium channel.
  • Two versions to choose from: open bezel with metal endplates or solid ABS plastic bezel.
  • Sized for P.C. boards 92mm (min) to 98mm (max) wide. Enclosures will not accept and were not designed for 100mm wide Eurocard's.
  • P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
  • Rugged one piece body - constructed from extruded aluminium with a minimum thickness of 0.09" (2.29mm).
  • Extruded body and aluminium endplates (on metal endplate version) are clear anodised.
  • Open bezel with metal endplate version includes eight (8) clear zinc-plated assembly screws. Note: Recommended screw torque is 5 lbf/in.
  • Solid bezel version includes eight (8) black assembly screws. Note: Recommended screw torque is 5 lbf/in.
