Product Price Breakdown
1+ £37.75
10+ £34.73
25+ £33.98
50+ £32.84
100+ £32.47
250+ £32.09
500+ £31.71
1000+ £31.52
2500+ £31.15
In Stock Prices shown excludes VAT
Product Information
Part No 1455KHD1601BK
Product Series 1455HD Series
Series1455HD
ColourBlack
MaterialAluminium
Length160mm
Width86mm
Height51mm
IP RatingIP54
Max. P.C. Board Length159mm
Max. P.C. Board Width74mm
Technical Drawingspdf     dxf     stp
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1455KHD1601BK Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1455KHD1601BK | 1455HD Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

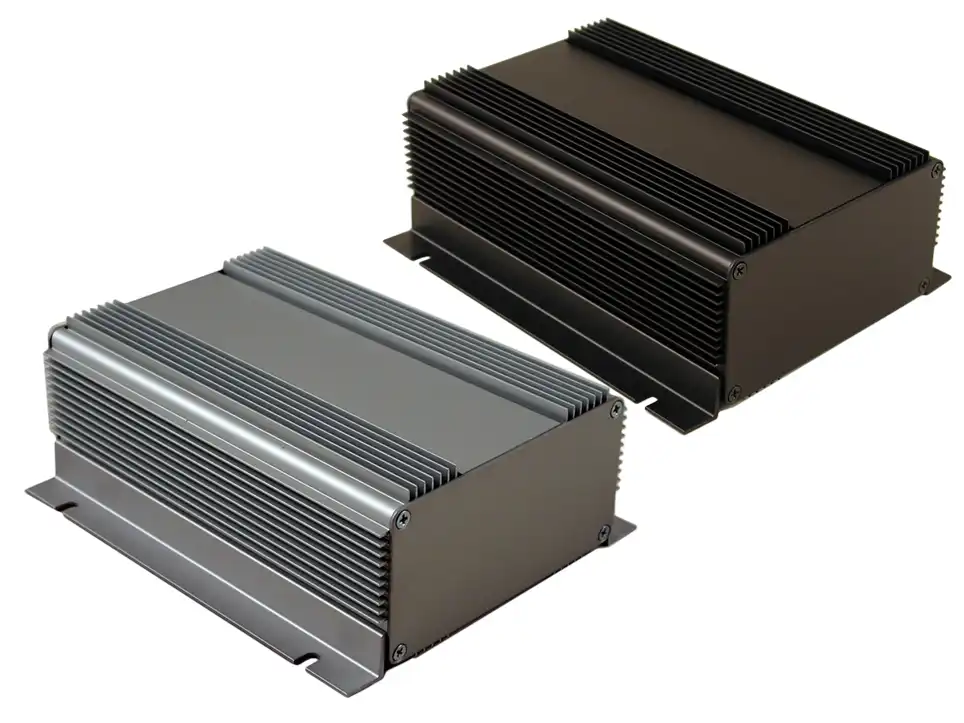

1455HD Series - Heat Dissipating Extruded Aluminium Enclosures
Fins For Heat Dissipation, Wall-Mounting Flanges

Product Features
  • Designed to house P.C. Boards or equipment.
  • Easy wall mounting or shelf mounting with two removable flanges.
  • Sized for standard Eurocard P.C. Boards.
  • P.C. Boards mount horizontally by sliding into internal slots extruded into the enclosure body.
  • Two piece body - with easily removable belly plate for easy access to top interior of enclosure.
  • Extruded body and aluminium endplates with a choice of either silver or black anodised finish.
  • Includes eight (8) assembly screws - either silver or black assembly screws to match enclosure panels and body.
Assembly Hardware
  • For black replacement screws (quantity 100) order part number 1455MS100BK.
  • For natural replacement screws for silver anodised enclosures (quantity 100) order part number 1455MS100.
  • Recommended screw torque is 5 lbf/in.
Aluminium End Panels
  • Extra end panels are sold in packs of 10 and are available in silver, black, red, or blue anodised finishes.
  • Please refer to the product data sheet for product compatibility.
