1455CF801BK | Hammond Manufacturing Enclosures
1455CF801BK | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £10.00
10+ £9.20
25+ £9.00
50+ £8.70
100+ £8.60
250+ £8.50
500+ £8.40
1000+ £8.35
2500+ £8.25
In Stock Prices shown excludes VAT
Product Information
Part No 1455CF801BK
Product Series 1455F Series
Series1455F
ColourBlack
MaterialAluminium
Length80mm
Width54mm
Depth23mm
Width (Including Flanges)77mm
IP RatingIP54
Max. P.C. Board Length79mm
Max. P.C. Board Width50mm
Technical Drawingspdf     dxf     stp
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1455CF801BK Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1455CF801BK | 1455F Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

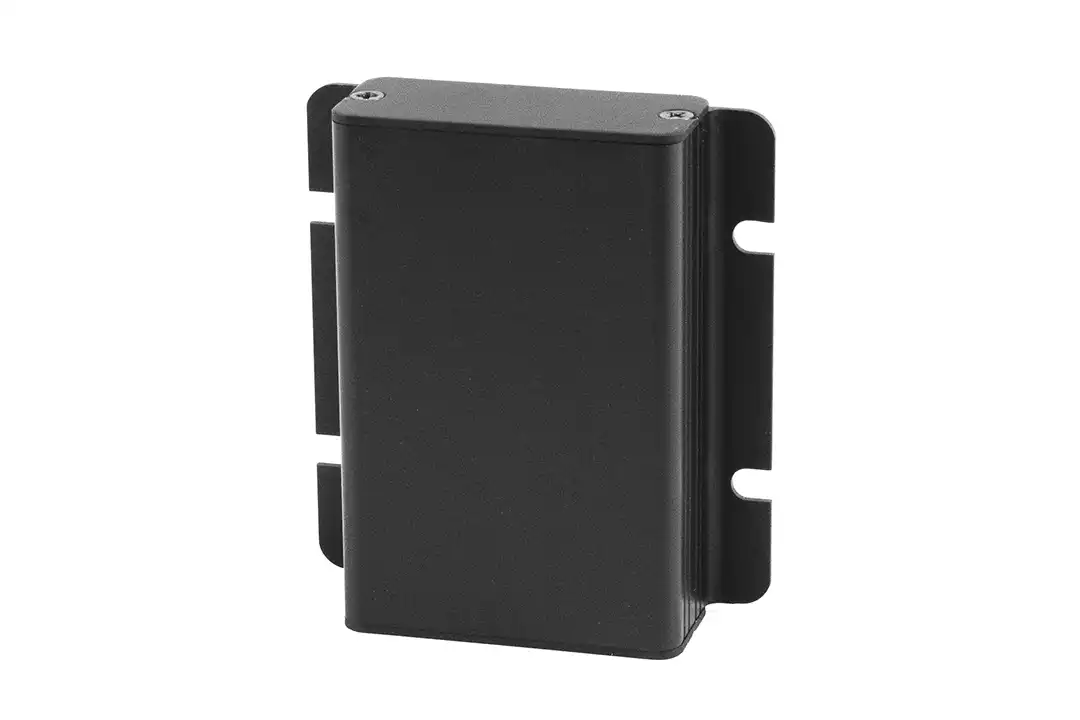

1455F Series - Extruded Aluminium Enclosures With Integrated Flanges

Product Features
  • Designed to house P.C. Boards or for equipment interfacing.
  • Integrated slotted flanges allow for easy wall mounting.
  • Flange provides a completely flat bottom surface and transitions seamlessly into the extrusion body for a finished look.
  • P.C. Boards mount into extrusions by sliding into internal slots extruded into the enclosure body.
  • Rugged body constructed from extruded aluminium with a minimum thickness of .06" (1.5mm).
Product Includes
  • Extruded aluminium body - choice of silver or black anodised.
  • (2) Aluminium end panels.
  • Includes all hardware - end panel screws are zinc-plated #6 x 3/8" TTT thread rolling, steel screws with a #4 flat head Philips drive. Supplied screws are natural or black to match housing.
Assembly Hardware
  • For black replacement screws (quantity 100) order part number 1455MS100BK.
  • For natural replacement screws for silver anodised enclosures (quantity 100) order part number 1455MS100.
  • Recommended screw torque is 5 lbf/in.
Aluminium End Panels
  • Extra end panels are sold in packs of 10 and are available in silver, black, red, or blue anodised finishes.
  • Please refer to the product data sheet for product compatibility.
Related Products
  • Don't need wall-mounting flanges? Try our standard 1455 Series.
