1453C | Hammond Manufacturing Enclosures
1453C | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £67.19
10+ £61.81
25+ £60.47
50+ £58.45
100+ £57.78
250+ £57.11
500+ £56.44
1000+ £56.10
2500+ £55.43
In Stock Prices shown excludes VAT
Product Information
Part No 1453C
Product Series 1453 Series
Series1453
ColourBeige
MaterialSteel
Height178mm
Width178mm
Depth279mm
IP RatingIP30
Technical Drawingspdf     dxf     stp     3d
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1453C Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1453C | 1453 Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

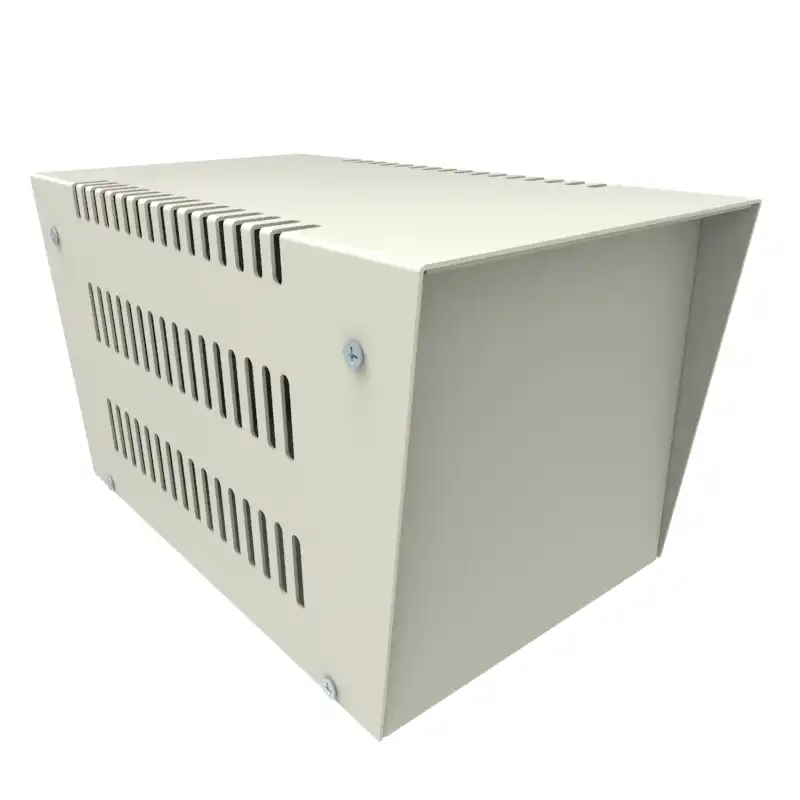

1453 Series - Heavy Duty Steel Instruments

Product Features
  • All steel, heavy duty construction designed to house heavy, heat producing items such as power supplies.
  • Bottom of unit is 16 gauge steel, top is 18 gauge steel.
  • Finished in a rugged beige powder coat.
  • Top half is of an upside down "U" shape design for easy removal, bottom half is also "U" shaped, but includes a fold on all sides including front and back for extra strength and mounting of top case.
  • Top case section is heavily ventilated for excellent air circulation with an attractive slant (also doubles as a lifting area - both front and back).
  • Top lip extends 0.75" (19mm) on both sides adding 1.5" (38mm) to the total depth.
  • Bottom is solid except for 4 holes for mounting heavy duty rubber feet.
  • Includes nickel plated self-tapping screws and screw on 0.75" (19mm) high, rubber feet (1421T7).
