1427DINCLIP | Hammond Manufacturing Enclosures
1427DINCLIP | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £3.42
10+ £3.15
25+ £3.08
50+ £2.97
100+ £2.94
250+ £2.91
500+ £2.87
1000+ £2.85
2500+ £2.82
In Stock Prices shown excludes VAT
Product Information
Part No 1427DINCLIP
Product Series 1427DINCLIP Series
Series1427DIN
ColourSilver
MaterialNylon
Length43mm
Width10mm
ContentsPack of 2
Weight Rating35 lbs / 15.8 kg per clip
Technical Drawingspdf     dxf     stp
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1427DINCLIP Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1427DINCLIP | 1427DINCLIP Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

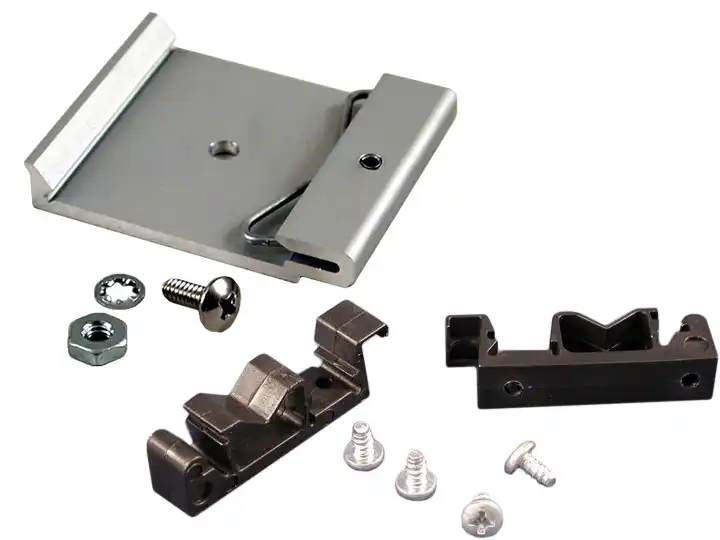

1427DINCLIP Series - DIN Clips
Nylon and Extruded Aluminium

Nylon DIN Clips (1427DINCLIP)
  • Designed for mounting enclosures to 35mm wide DIN rails.
  • Includes hardware (quantity 4 of a #6 x 1/4" self tapping, Philips head screw) and drilling template.
  • Center to center hole spacing is 1.18" (30mm).
  • Material is a rugged black nylon.
  • Recommended maximum weight load is 35 lbs. each (70 lbs. per pair).
  • Units are 1.80" (45.7mm) long, 0.40" (10.1mm) wide - overall.
  • Sold in packages of 2.
Heavy Duty Aluminium DIN Clips
  • Designed for mounting enclosures to 35mm wide DIN rails.
  • Choice of three lengths.
  • Includes enclosure mounting hardware.
  • Material is clear anodised aluminium with spring steel wire.
  • Maximum weight capacity of 125 lbs. (56 kg.) per unit.
