1421PCB1-8 | Hammond Manufacturing Enclosures
1421PCB1-8 | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £3.36
10+ £3.09
25+ £3.02
50+ £2.92
100+ £2.89
250+ £2.85
500+ £2.82
1000+ £2.80
2500+ £2.77
In Stock Prices shown excludes VAT
Product Information
Part No 1421PCB1-8
Product Series 1421PCB Series
Series1421
ColourWhite
MaterialNylon
Overall Height17mm
Standoff Height6mm
ContentsPack of 8
Technical Drawingspdf     stp
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1421PCB1-8 Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1421PCB1-8 | 1421PCB Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

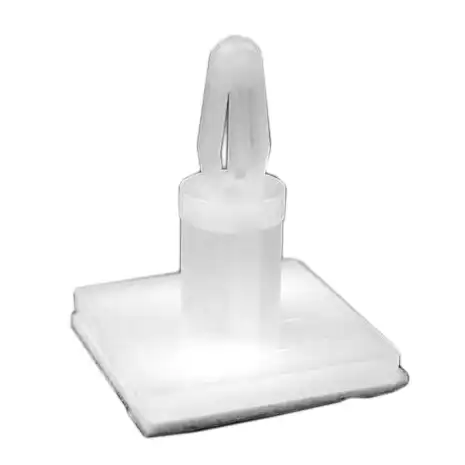

1421PCB Series - Printed Circuit Board Standoffs

1/4" Standoffs
  • 0.65" (17mm) overall height.
  • 0.71" (18mm) square mounting pad with self adhesive.
  • P.C. board bottom would rest 0.25" (6mm) above the enclosure floor.
  • Suggested material thickness 0.0625" (1.6mm) max.
  • Suggested hole diameter 0.156" (4mm).
  • Tough white nylon.
1/2" Standoffs
  • 0.90" (23mm) overall height.
  • 0.71" (18mm) square mounting pad with self adhesive.
  • P.C. board bottom would rest 0.50" (12.7mm) above the enclosure floor.
  • Suggested material thickness 0.0625" (1.6mm) max.
  • Suggested hole diameter 0.156" (4mm).
  • Tough white nylon.
