Product Information
Part No 1214
Product Series 1212-14-16 Series
Series1212-14-16
ColourBlack
MaterialFlame Retardant ABS Plastic
Length75mm
Width96mm
Height48mm
Technical Drawingspdf     dxf
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1214 Share Product on Facebook Share Product on Twitter Share Product on LinkedIn

1214 | 1212-14-16 Series | Hammond Manufacturing Enclosures | KGA Enclosures Ltd

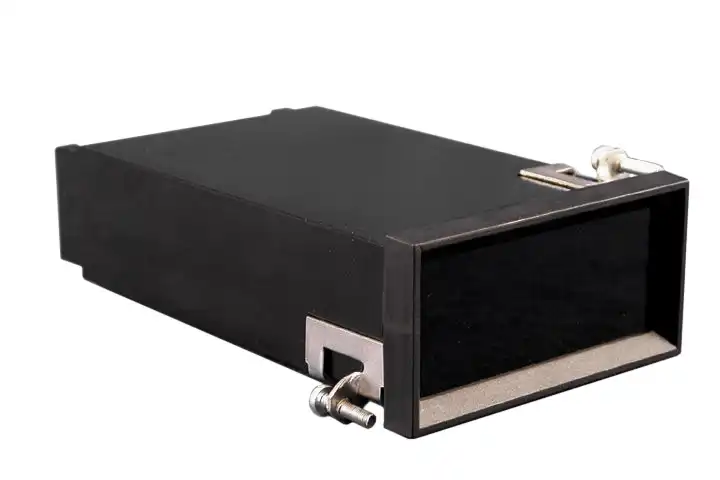

1212-14-16 Series - Panel Mounted Enclosures
Conforms With DIN 43700 - (Product Range Discontinued - Information Only)

Product Features:
  • Perfect for enclosing instruments or P.C. boards that need to be panel mounted.
  • Moulded in black flame retardant ABS plastic.
  • Conforms with DIN 43700.
  • Moulded guides for two horizontally mounted PC boards (1.6mm thick).
  • Includes two front panels - choose between natural aluminium panel or grey tinted acrylic filter panel.
  • Complete with plastic bezels and two metal panel mounting clamps with screws.
