HYJ14116SS - Hammond Manufacturing Electrical Enclosures
HYJ14116SS | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ £725.08
10+ £667.07
25+ £652.57
50+ £630.82
100+ £623.57
250+ £616.32
500+ £609.06
1000+ £605.44
2500+ £598.19
In Stock Prices shown excludes VAT
Product Information
Part No HYJ14116SS
Product Series HYJ Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - HYJ14116SS Share on Facebook Share on Twitter Share on LinkedIn

HYJ14116SS | HYJ Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

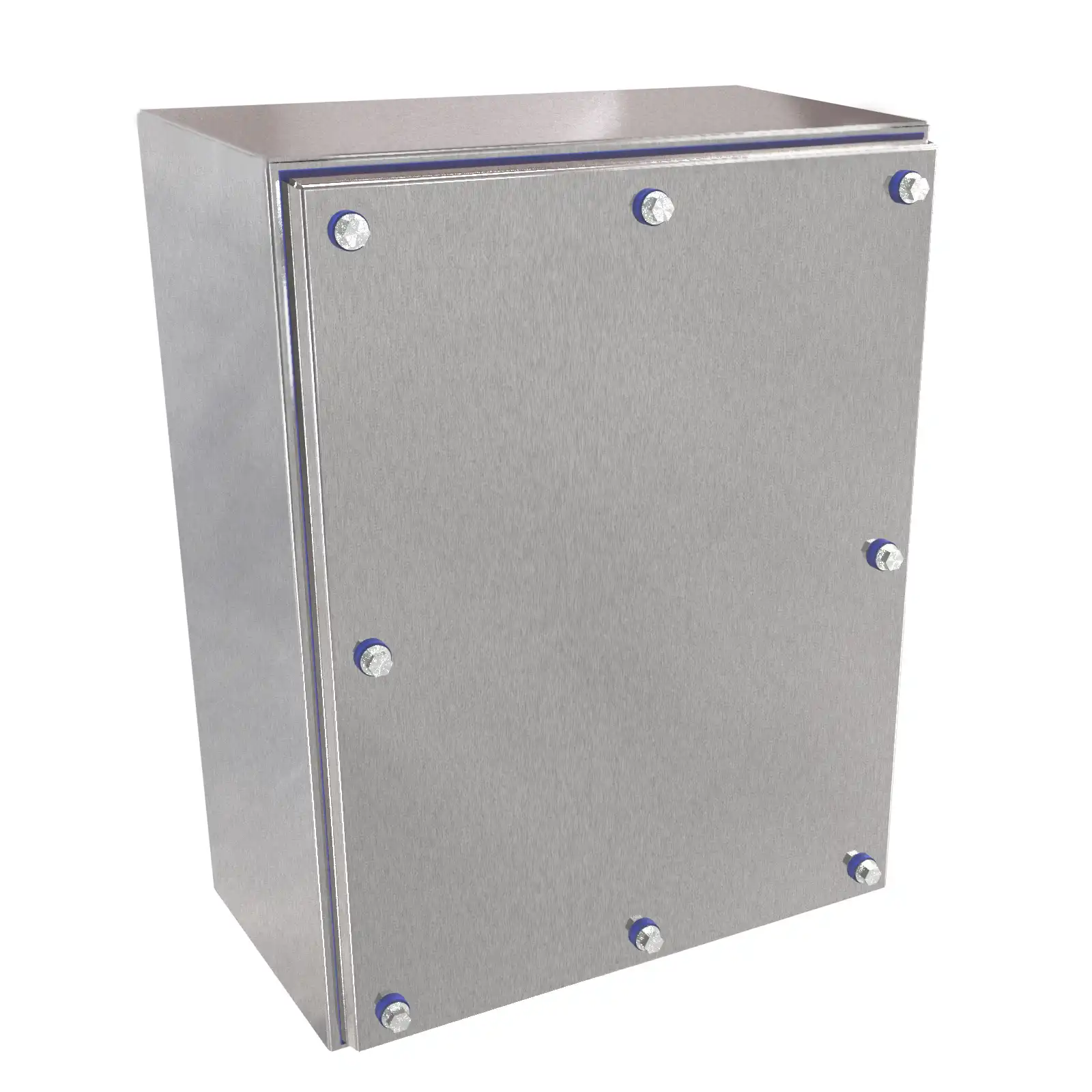

HYJ Series - Hygienic Type 4X Stainless Steel Junction Box
Sloped Sides With Silicone Gasket

Product Application:
  • Designed to enclose electrical and/or electronic equipment and protect against harsh, hygienic environments for junction box and wallmount applications.
  • Sloped on 4 sides prevent water from resting on top regardless of enclosure orientation.
  • Hex head design screws and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments.
  • A wide range of sizes and practical accessories make this product line a complete package.
Product Construction:
  • Formed 304 stainless steel.
  • Sloped 3° on all 4 sides.
  • Continuously welded seams ground smooth.
  • Hex head screw cover can be completely removed for modifications.
  • Silicone gasket mounts around entire door edge allowing for efficient cleaning in hygienic environments.
  • Gasket can be easily removed and re-installed for cleaning or replacement. Additional silicone gaskets can be ordered separately.
  • Studs provided for mounting inner panel.
  • Includes hardware kit with panel mounting nuts.
  • No pre-drilled wall mounting holes allow for flexible mounting alternatives - weld-in-place, stand-offs.
  • Bonding stud provided on door and grounding stud installed in enclosure.
Product Finish:
  • Cover and enclosure are natural stainless steel with a smooth #4 dairy finish.
Product Standards:
  • UL 508A Type 3R, 12, 4, 4X.
  • cUL Type 3R, 12, 4, 4X.
  • NSF - ANSI 169
    • Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable.
  • Complies with:
    • NEMA 3R, 12, 4, 4X.
    • IEC 60529, IP69, IP69K..
