Product Information
Part No DTS3241A460LG
Product Series DTS3X41 Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - DTS3241A460LG Share on Facebook Share on Twitter Share on LinkedIn

DTS3241A460LG | DTS3X41 Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

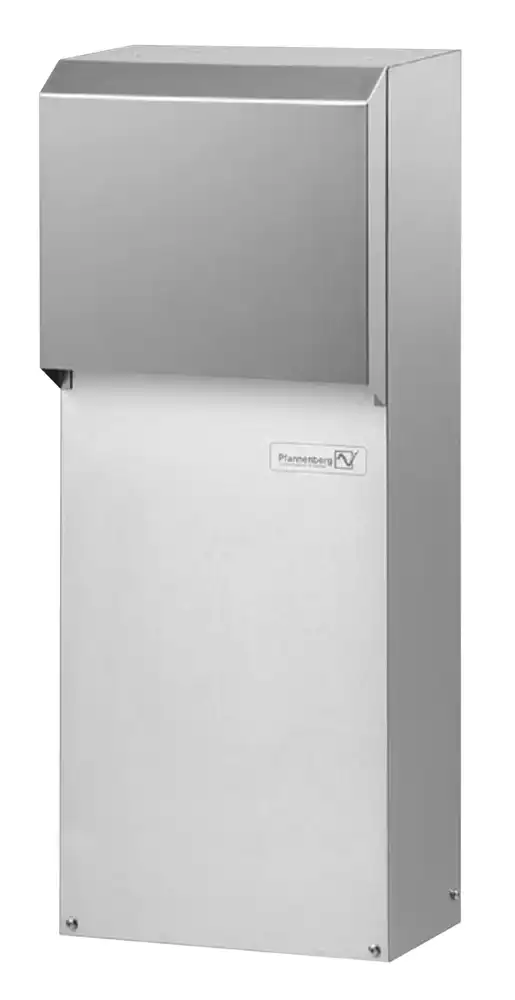

DTS3X41 Series - 4000-7000 BTU/H Indoor Air Conditioner
Type 12, Side Mounting

Product Description
  • Designed for side mounting on any enclosure surface where high capacity system cooling is required.
  • Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
Product Features
  • R134a refrigerant.
  • Thermostat control accessible from inside enclosure.
  • Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
  • Built in condensate evaporator.
  • Continuous air circulation from high capacity fans.
  • EMI/RFI suppression meets CE.
  • Self-diagnostics on startup.
  • Fault indication via LED light.
  • Provision for door contact allowing power down when enclosure door is opened.
  • Gasket, mounting kit, and template for enclosure cutout and drilling are included.
  • Condensate drain hose and clamp provided.
Product Standards
  • Maintains enclosure's NEMA 12 rating.
  • IP54.
  • UL, cUL, and CE.
