Product Information
Part No DTS3021A115LG
Product Series DTS3021 Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - DTS3021A115LG Share on Facebook Share on Twitter Share on LinkedIn

DTS3021A115LG | DTS3021 Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

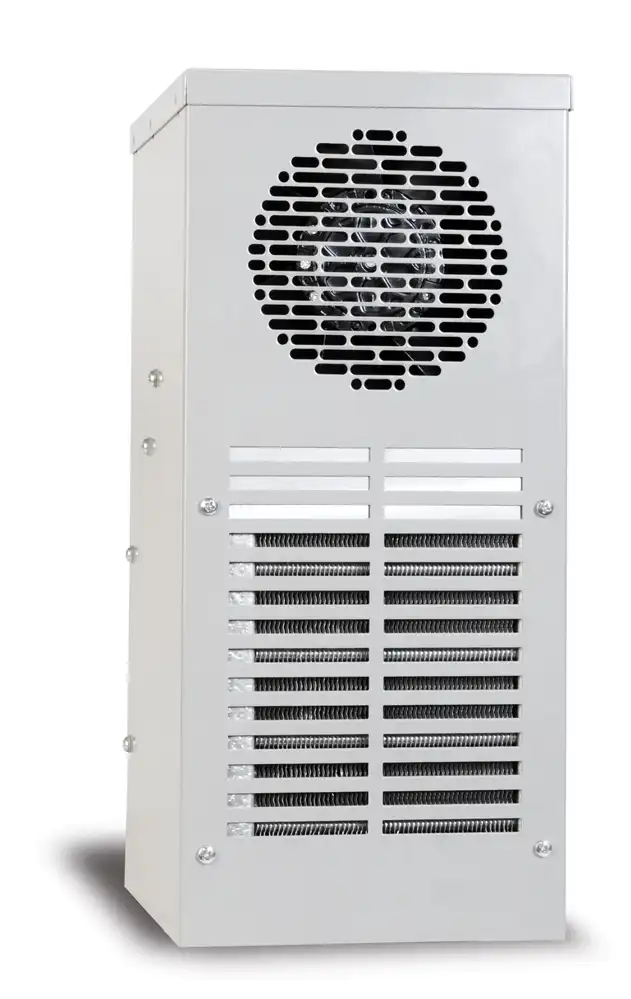

DTS3021 Series - 900-1300 BTU/H Indoor Air Conditioner
Type 12, Side Mounting

Product Description
  • Compact design for side mounting on any enclosure surface where hot spot cooling or low capacity cooling is required.
  • Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • Air conditioners are shipped separately and installed on site.
Product Features
  • R134a refrigerant.
  • Thermostat control accessible from inside enclosure.
  • Expansion valve increased efficiency with improved evaporator heat transfer and less frequent compressor operation.
  • Direct condensate discharge via 1/4" NPS threaded port.
  • Continuous air circulation from high capacity fans.
  • EMI/RFI suppression meets CE.
  • Door contact for power down when enclosure door is opened.
  • Gasket, mounting kit, and template for cutout and drilling are included.
  • Washable aluminium mesh filter.
Product Standards
  • Maintains enclosure's NEMA 12 rating.
  • IP54.
  • UR, cUR, and CE.
