Product Information
Part No DTI6301A460LG
Product Series DTI Series
RoHS Compliant Yes
REACH Compliant Yes
Share Me - DTI6301A460LG Share on Facebook Share on Twitter Share on LinkedIn

DTI6301A460LG | DTI Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

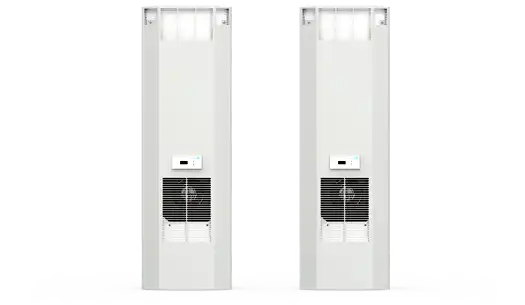

DTI Series - Semi-Recessed Indoor Air Conditioner
Type 12
Product Information
Purchase / Buy Products
Customisation Services

Product Description
  • Designed for recessed mounting on any enclosure surface where high capacity system cooling is required.
  • Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • Optimum air circulation with maximum clearance distance between warm inlet and cold outlet for reduced hot spot locations.
  • Condenser with 3mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air.
Product Features
  • R134a refrigerant.
  • Energy saving mode integrated by default into multi-controller.
  • External thermostat control for visual monitoring.
  • Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
  • Built in condensate evaporator.
  • EMI/RFI suppression meets CE.
  • Self-diagnostics on startup.
  • Provision for door contact allowing power down when enclosure door is opened.
  • Gasket, mounting kit, and template for enclosure cutout and drilling are included.
  • Condensate drain hose and clamp provided.
  • "Click and Fit" units reduce installation times by more than 90%.
Product Standards
  • Maintains enclosure's NEMA 12 rating.
  • IP54.
  • cUL and CE.
