Product Information
Part No DSTOPK
Product Series DSTOPK Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - DSTOPK Share on Facebook Share on Twitter Share on LinkedIn

DSTOPK | DSTOPK Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

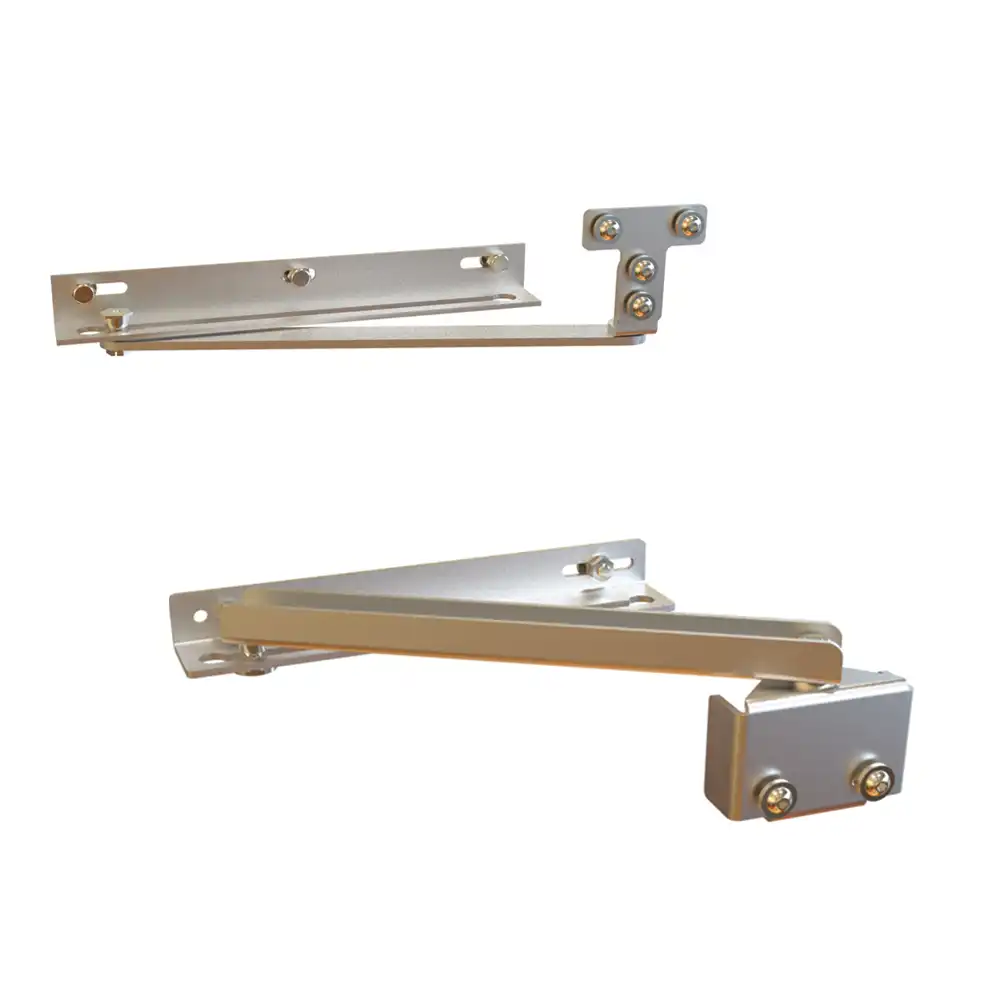

DSTOPK Series - Door Stop Kit

Product Features
  • Offered in 2 versions - standard and heavy duty.
  • Provides for door opening in fixed positions as required.
  • Prevents door swing that can occur in field maintenance situations.
  • Minimum enclosures width of 20" for single door and 48" for two-door is required.
  • Door stop kit maintains NEMA 4X, 4, 3R, and 12 ratings when installed correctly using the hardware and directions provided.
  • Standard kit:
    • Ideal for most wallmount enclosure applications.
    • Manufactured in 12 gauge zinc plated steel.
    • Suitable for top and/or bottom installation.
  • Heavy duty kit:
    • Designed for use with freestanding and floormount enclosures.
    • Can be used on certain heavy duty wallmount series - 1418 Series, 1422 Series, HN4 WM Series, or HWHK Series - providing the specific sizes does NOT have door stiffeners to interfere.
    • Manufactured in 10 gauge 316 stainless steel.
    • Designed for bottom of door installation only.
    • Not compatible with enclosures with quarter turns located at bottom of doors.
  • Note: Kits are not compatible with Eclipse swing panel/frame accessories.
