Product Information
Part No C3RMC303010
Product Series C3RMC Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - C3RMC303010 Share on Facebook Share on Twitter Share on LinkedIn

C3RMC303010 | C3RMC Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

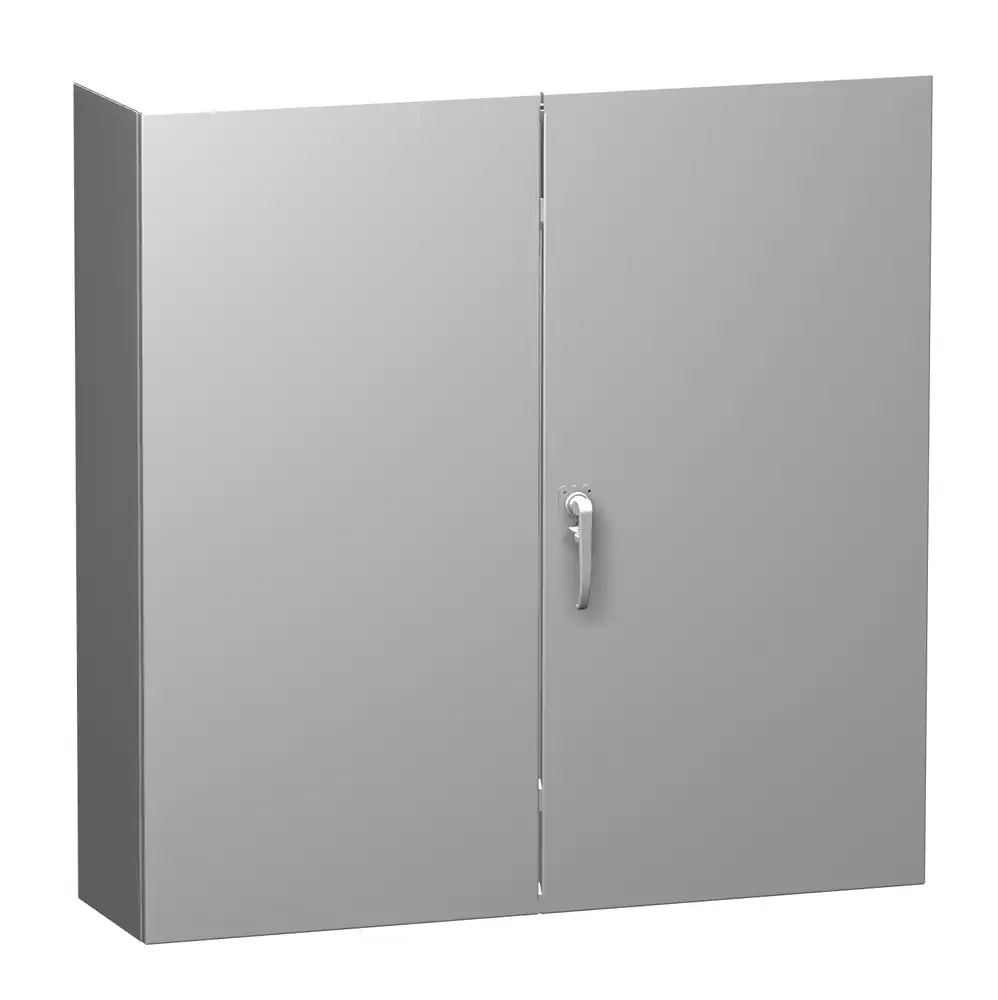

C3RMC Series - Type 3R Mild Steel Metering Cabinets
Hinge Door With Handle

Product Application
  • Designed for outdoor housing of metering transformers.
Product Construction
  • Offered in single and double door versions.
  • Formed and seam welded from 14 or 16 gauge steel.
  • Smooth, continuously welded seams ground smooth.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Padlockable "L" style handle for 3 point latch system.
  • Oil resistant gaskets are permanently secured.
  • Removable inner panel included.
  • Collar studs provided for mounting inner panel.
  • Doors may be easily removed for modifications and are interchangeable.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • Hinges are constructed from 304 stainless steel.
  • Hinge pins are stainless steel.
Product Finish
  • Cover and enclosure are phosphatized and finished with a recoatable ANSI 61 smooth grey powder inside and out.
  • Removeable inner panel is finished in white powder coating.
Product Standards
  • CSA Approved, Type 12, or 3R.
    • To meet 3R, drain hole must be drilled in bottom of enclosure.
  • Complies with:
    • NEMA Type 12 or 3R.
    • IEC 60529, IP54 or IP24.
