Product Information
Part No C3RHCLOMFK2
Product Series C3R HCLO Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - C3RHCLOMFK2 Share on Facebook Share on Twitter Share on LinkedIn

C3RHCLOMFK2 | C3R HCLO Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

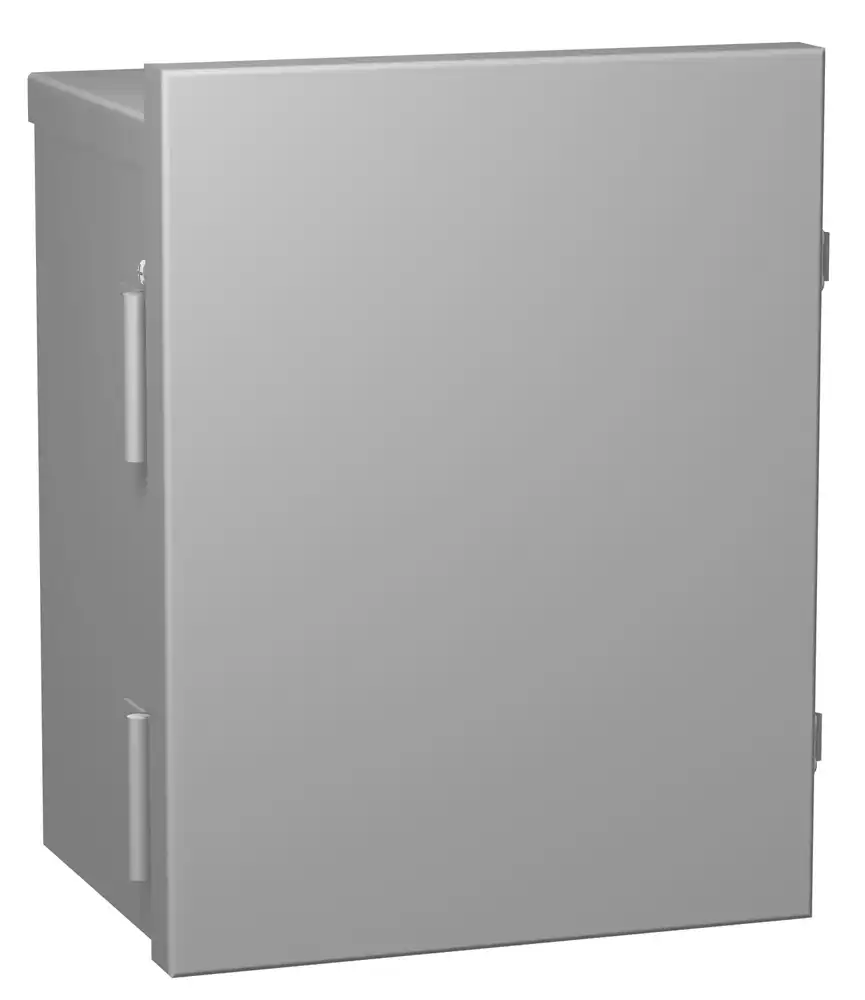

C3R HCLO Series - Type 3R Painted Galvanized Steel Enclosure
Lift-Off Hinge Door With Snap Latch

Product Application
  • Designed for use as a wiring/junction box.
  • Provides protection against rain, sleet, snow, and dripping water.
Product Construction
  • Formed and spot welded from 16 gauge galvanized steel (14 gauge with 24" wide).
  • Extended height door and seam-free sides, front, and back.
  • Galvanized steel lift-off hinges with stainless steel pins.
  • Cover fastened securely with zinc plated draw pull catches.
  • Provision for padlocking on zinc plated draw pull catch.
  • Embossed mounting holes on back.
  • Foam gasket seal around door opening.
Product Finish
  • Enclosure and cover are finished in ANSI 61 grey powder coating.
Product Standards
  • UL-50 Type 3R.
  • CSA Type 3R.
  • Complies with:
    • NEMA Type 3R.
    • IEC 60529, IP24.
