Product Information
Part No BDN4XN1
Product Series BDN Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - BDN4XN1 Share on Facebook Share on Twitter Share on LinkedIn

BDN4XN1 | BDN Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

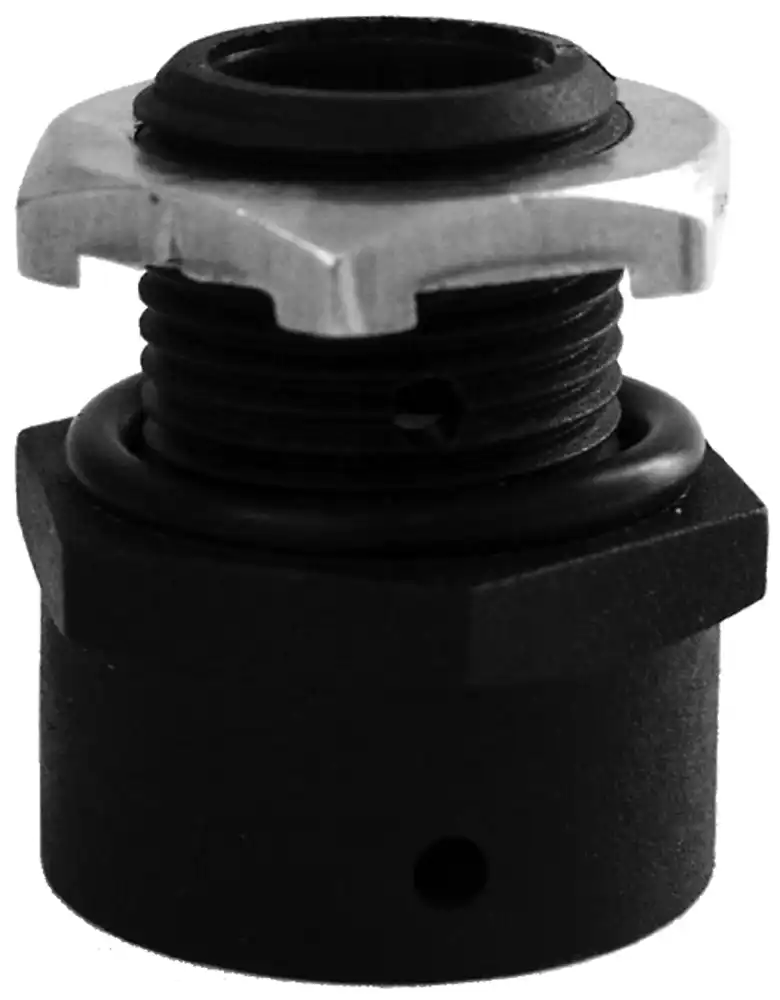

BDN Series - Pressure Compensation Plug

Product Features
  • Packaged individually.
  • Provides for controlled pressure compensation due to temperature variations (i.e. night/day operation).
  • When mounted to bottom of enclosure, this unique design provides a method of effectively draining moisture from within the enclosure.
  • Recommend two plugs per cabinet in opposite locations.
  • Pipe Thread M20 x 1.5 (minimum cutout 20.2mm / 0.80").
  • Recommended Torque 10 NM.
