2CSD83643 | Hammond Manufacturing Electrical Enclosures
2CSD83643 | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ P.O.A.
10+ P.O.A.
25+ P.O.A.
50+ P.O.A.
100+ P.O.A.
250+ P.O.A.
500+ P.O.A.
1000+ P.O.A.
2500+ P.O.A.
In Stock Prices shown excludes VAT
Product Information
Part No 2CSD83643
Product Series S2CD Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 2CSD83643 Share on Facebook Share on Twitter Share on LinkedIn

2CSD83643 | S2CD Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

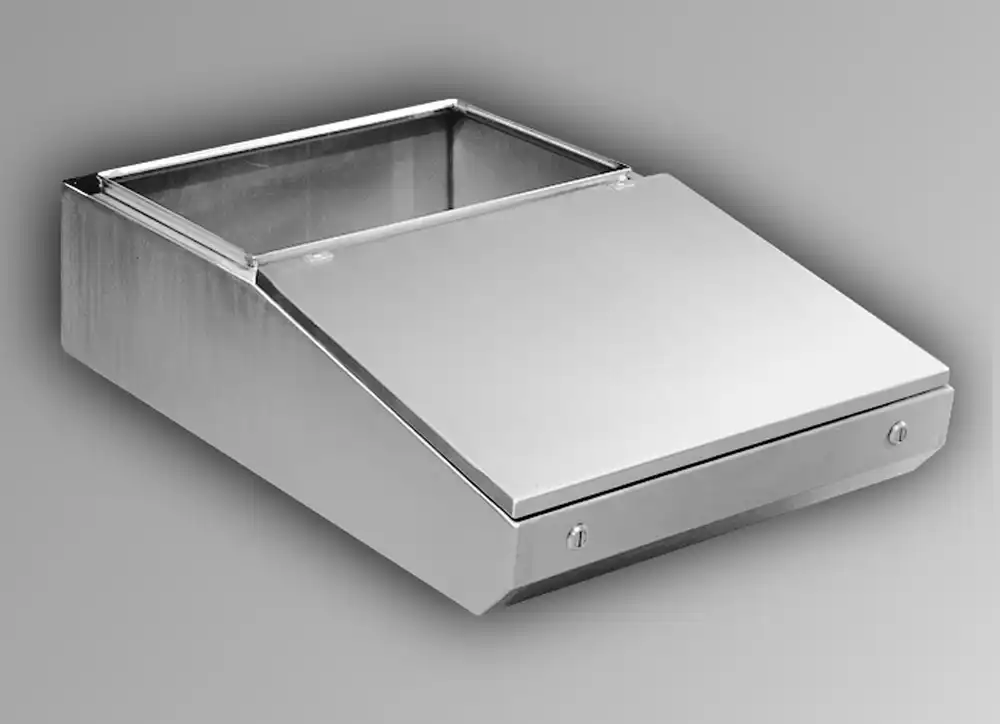

S2CD Series - Type 4, 4X Mild Steel and Stainless Steel Desk Units
Modular Console System
Product Information
How To Purchase Products
Customisation Services

Product Application:
  • Generally used in combination with other modular console components (i.e. base, pedestal, and/or turret).
  • Provides an ideal sloped surface for mounting keyboards, switches, indicator lights, and/or dials.
  • Open top permits mounting of a turret (usually for CRT applications) or an optional hinged desk cover (providing a flat, sturdy desk surface).
  • Available in either standard (will support standard turret only) or deep (will support deep turret only) format.
  • Smooth lines and clean edges provide an attractive contemporary appearance.
Product Construction:
  • Formed 14 gauge steel bodies with 14 gauge steel lid.
  • Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel lid.
  • Smooth, continuously welded seams without knockouts or holes.
  • Body stiffeners are provided where required for increased strength and rigidity.
  • Offered in 4 widths 24", 36", 48" and 60".
  • Solid sides and back, lid on sloped top area, open on flat top area, bottom is solid under lid area and open under flat top area.
  • Deep desk has a 6.7" deeper top opening than standard desk allowing for support of deep turret - see drawings as deep desk has different profile (angled back) from standard desk (flat back).
  • Lid profiles provide increased strength.
  • Formed lip on enclosure exclude flowing liquids and contaminants.
  • Slotted quarter turn oil-tight latches secure the lid, with optional tamper resistant and locking latches available.
  • Stainless steel models utilize stainless steel hardware.
  • Oil resistant gaskets are permanently secured.
  • Features several internal stud locations for mounting desk inner panel.
  • A bonding screw is provided on the lid and a grounding stud is provided in the enclosure.
Product Finish:
  • Available in RAL 7035 light grey textured powder coating and natural stainless steel with a smooth, brushed finish.
  • Desk covers available in same finishes.
Product Standards:
  • UL 508A Type 3R, 4, 12 (Stainless Steel, add 4X).
  • CSA Type 3R, 4, 12, 13 (Stainless Steel, add 4X).
  • EIA RS-310-D.
  • Complies with:
    • NEMA Type 3R, 4, 12 (Stainless Steel, add 4X).
    • IEC 60529, IP66.
