2CLC2048 - Hammond Manufacturing Electrical Enclosures
2CLC2048 | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

Product Price Breakdown
1+ P.O.A.
10+ P.O.A.
25+ P.O.A.
50+ P.O.A.
100+ P.O.A.
250+ P.O.A.
500+ P.O.A.
1000+ P.O.A.
2500+ P.O.A.
In Stock Prices shown excludes VAT
Product Information
Part No 2CLC2048
Product Series S2CC Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 2CLC2048 Share on Facebook Share on Twitter Share on LinkedIn

2CLC2048 | S2CC Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

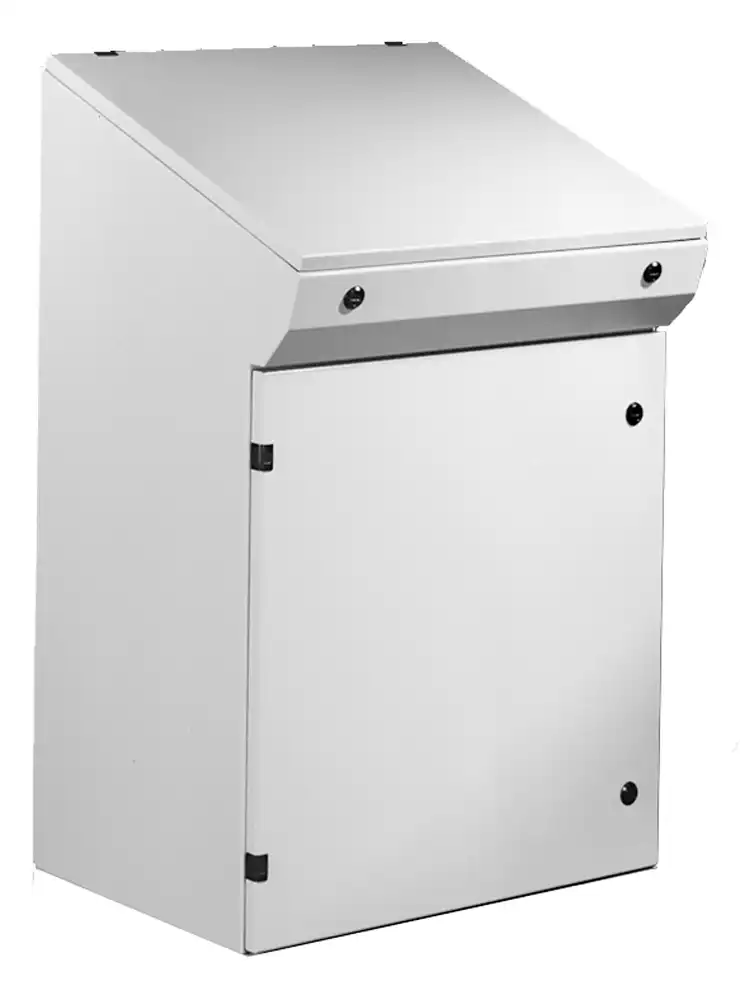

S2CC Series - Type 4, 4X Mild Steel and Stainless Steel Consolet
Modular Console System
Product Information
Purchase / Buy Products
Customisation Services

Product Application:
  • Serves as an economical housing for operator interface applications.
  • Provides an ideal sloped surface for mounting keyboards, switches, indicator lights, and/or dials.
  • Provides panel mounting capabilities for a variety of applications. Generally used as a stand alone enclosure. Possible to put side by side with base on a single plinth (i.e. 36" wide consolet with 24" base with terminal all together on a 60" plinth.
  • Optional casters (require plinth) allow for a completely mobile, NEMA rated work station.
  • Smooth lines and clean edges provide an attractive, contemporary appearance.
Product Construction:
  • Formed 14 gauge steel bodies with 14 gauge steel door and lid.
  • Also offered with formed 14 gauge 304 stainless steel bodies with 14 gauge 304 stainless steel door and lid.
  • Smooth, continuously welded seams without knockouts or holes.
  • Body stiffeners are provided where required for increased strength and rigidity.
  • Offered in 4 widths 24", 36", 48" and 60".
  • Has solid sides and back, solid door on front, 3 point adjustable lid on sloped (20°) top, and closed bottom with removable access panel.
  • 24" and 36" widths have single door on the front whereas 48" and 60" widths have two outside hinged doors on the front.
  • Doors can be hinged from either side on 24" and 36" units.
  • Door profiles provide increased strength and are pre-punched to provide mounting options.
  • Formed lip on enclosure excludes flowing liquids and contaminants.
  • Slotted quarter turn oil-tight latches secure the door and lid, with optional tamper resistant and locking latches available.
  • Stainless steel models utilize stainless steel hardware.
  • OIl resistant gaskets are permanently secured.
  • Features internal stud locations for mounting optional inner panel.
  • A bonding screw is provided on the door and a grounding stud is provided in the enclosure.
Product Finish:
  • Available in RAL 7035 light grey textured powder coating and natural stainless steel with a smooth, brushed finish.
Product Standards:
  • UL 508A Type 3R, 4, 12 (Stainless Steel, add 4X).
  • CSA Type 3R, 4, 12, 13 (Stainless Steel, add 4X).
  • EIA RS-310-E.
  • Complies with:
    • NEMA Type 3R, 4, 12 (Stainless Steel, add 4X).
    • IEC 60529, IP66.
