Product Price Breakdown
1+ P.O.A.
10+ P.O.A.
25+ P.O.A.
50+ P.O.A.
100+ P.O.A.
250+ P.O.A.
500+ P.O.A.
1000+ P.O.A.
2500+ P.O.A.
In Stock Prices shown excludes VAT
Product Information
Part No 1490D2
Product Series 1490 Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1490D2 Share on Facebook Share on Twitter Share on LinkedIn

1490D2 | 1490 Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

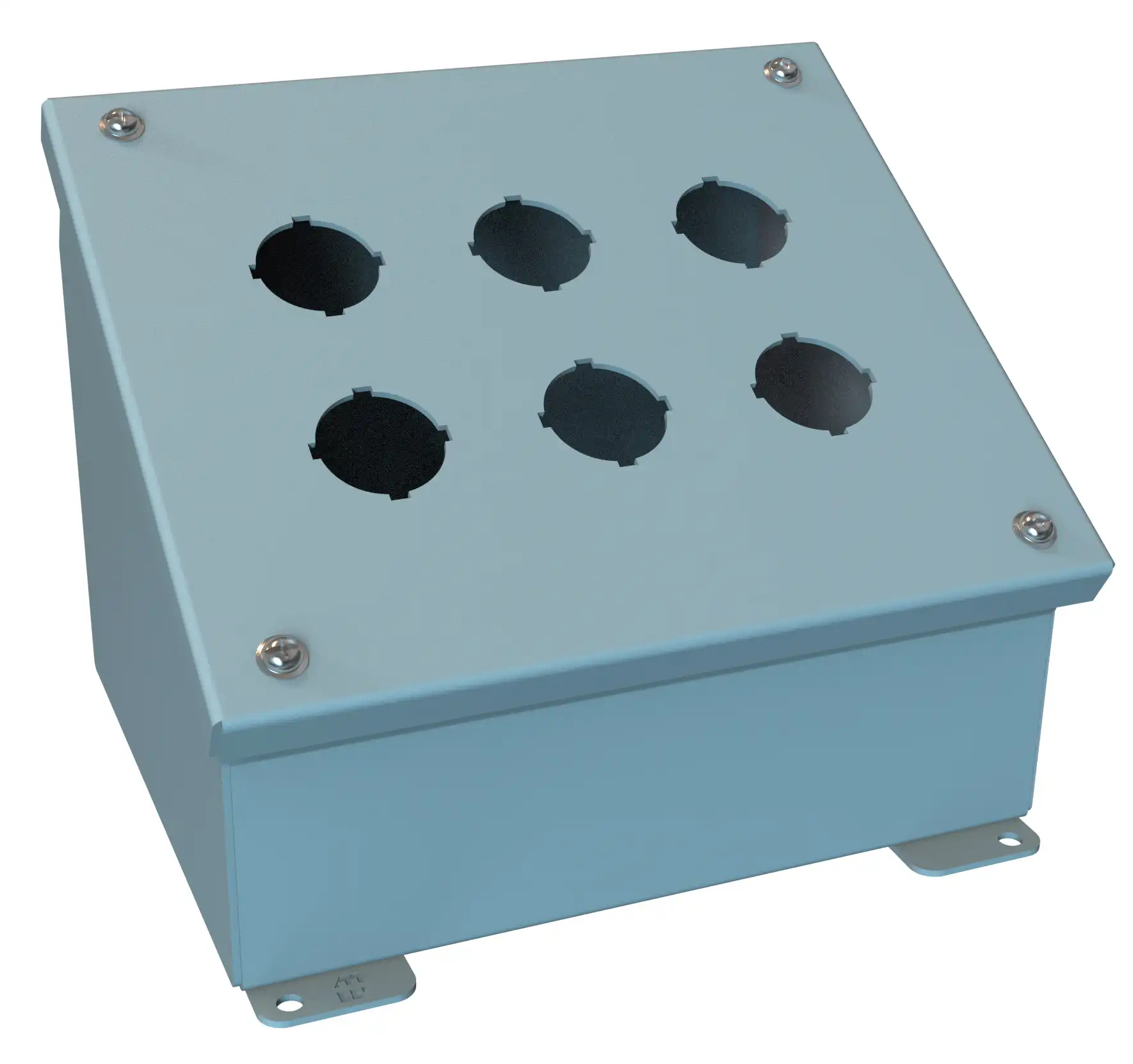

1490 Series - Type 12 Mild Steel Pushbutton Enclosures
Sloped Consolet

Product Application:
  • Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
  • Ideal for wall or surface mounting to provide the necessary control slope.
  • Provides protection from dirt, dust, oil and water.
Product Construction:
  • Formed 14 gauge steel.
  • Smooth continuously welded seams.
  • Construction provides either a 30° or 60° slope on front cover depending on mounting position.
  • Welded brackets provide for enclosure mounting.
  • Captive cover screws thread into sealed wells.
  • Larger enclosures provide internally hinged removable covers designed to hold the cover open during wiring.
  • Oil resistant gasket and adhesive.
  • A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Product Finish:
  • Cover and enclosure are phosphatized and finished in ANSI 61 grey powder coating.
Product Standards:
  • UL 508A Type 12 and 13.
  • CSA Type 12 and 13.
  • Complies with:
    • NEMA Type 12 and 13.
    • IEC 60529, IP54.
  • Appropriate components are required to maintain these standards.
