Product Information
Part No 1422F16F
Product Series 1422 FM Series
Technical DrawingsSTP     DXF     PDF
RoHS Compliant Yes
REACH Compliant Yes
Share Me - 1422F16F Share on Facebook Share on Twitter Share on LinkedIn

1422F16F | 1422 FM Series | Hammond Manufacturing Electrical Enclosures | KGA Enclosures Ltd

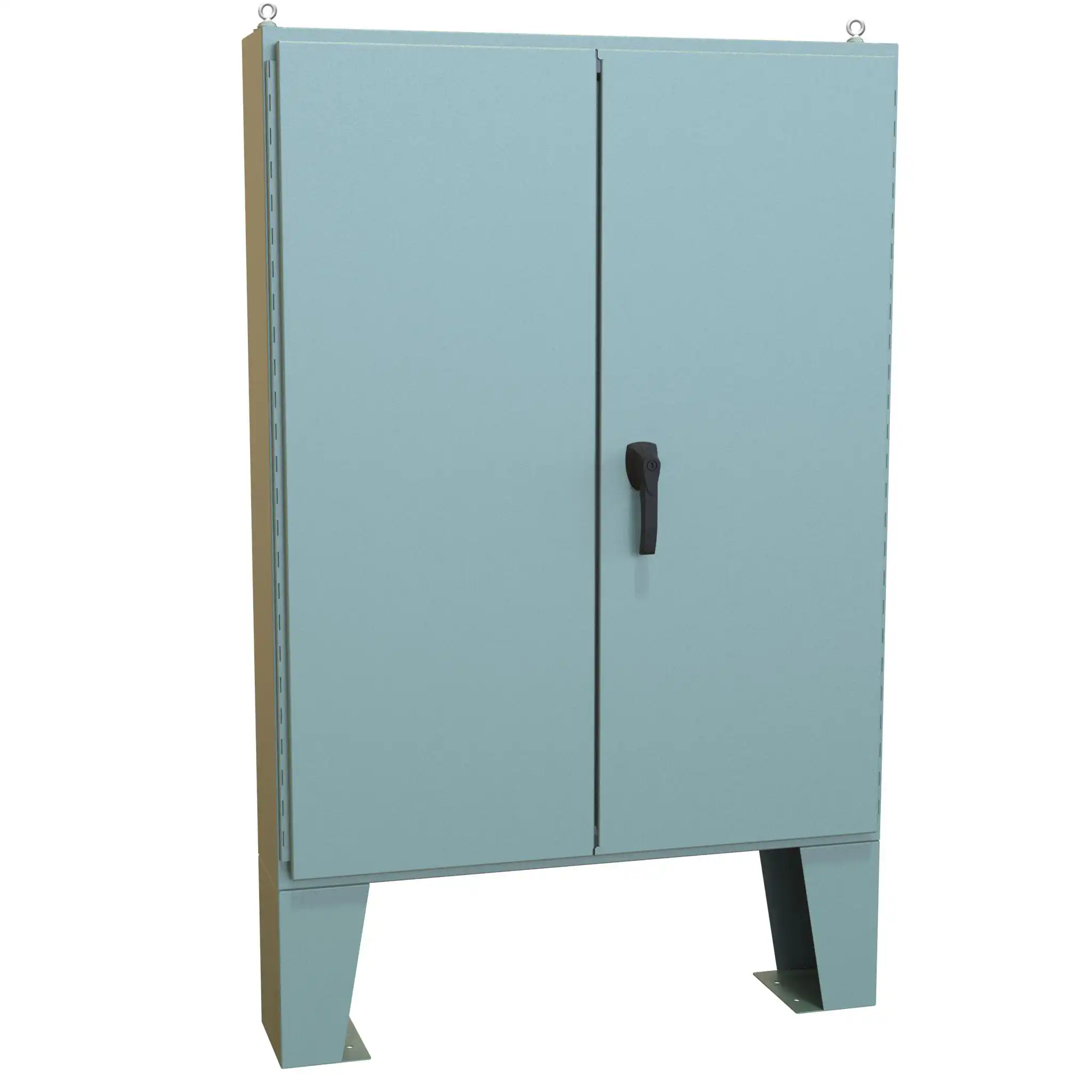

1422 FM Series - Type 12 Mild Steel Two Door Floormount Enclosure
Continuous Hinge Door With Handle
Product Information
How To Purchase Products
Customisation Services

Product Application:
  • Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.
  • Provides a degree of protection from falling dirt, dust, oil and water.
Product Construction:
  • Enclosures are formed steel - 14 gauge (54" high), 12 gauge (60" high), or combination 10/12 gauge (72" high).
  • Smooth, continuously welded seams without knockouts, cutouts or holes.
  • Body stiffeners are provided in enclosures for extra rigidity.
  • Heavy duty lifting eyebolts are provided with reinforced support angles.
  • 12" floor stands are welded to the enclosure (With feet Part No.).
  • Welded brackets provide for enclosure mounting (Without feet Part No.).
  • Gasketed overlapping doors eliminate the need for a center post.
  • Continuously hinged doors may be removed by pulling the hinge pin.
  • Doors are secured with a three point latch and operated with a key locking, padlockable handle.
  • Latch rods are equipped with rollers for easier door closing.
  • Oil resistant gaskets are permanently secured.
  • A removable 10 gauge inner panel is included in enclosures 60" and larger. Smaller sizes include a 12 gauge inner panel.
  • Provision for light kit mounting.
  • Panel supports are provided in enclosures 60" and larger for easy panel installation.
  • Collar studs are provided for mounting inner panels.
  • A grounding stud is provided in the enclosure for each door and a bonding stud is provided on the door.
  • A literature pocket is provided for the inside of the door.
Product Finish:
  • Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 grey powder coating.
  • Removable inner panel is finished in white powder coating.
Product Standards:
  • UL 508A Type 12.
  • CSA Type 12.
  • Complies with:
    • NEMA Type 12.
    • IEC 60529, IP54.
